日本圧着端子製造（JST）
Closed end connector 100 pieces CE-2 1 bag (100 pieces)
Closed end connector 100 pieces CE-2 1 bag (100 pieces)
Regular price
¥825
Regular price
Sale price
¥825
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
One side of the insulation is closed.
For connecting multiple wires together inside equipment. Wire conjugation range Stranded wire (mm2): 1.0 to 3.0
Wire confinement range AWG: 16-14
Rated current(A):600

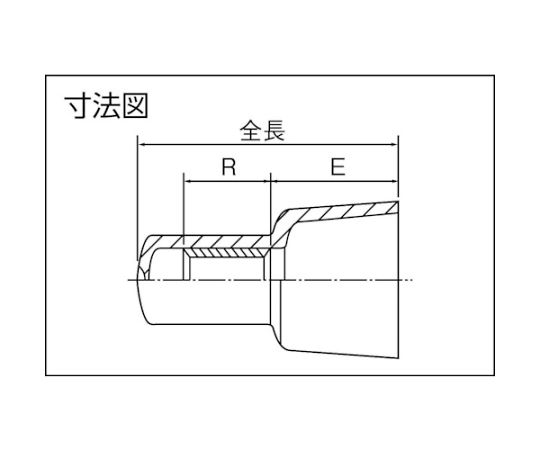

Total length (mm): 21.0
- R(mm):7.3
- E(mm):9.5
Inner diameter (mm): 8
JIS standard product: ○
Color: Milky white
Inner dimensions (mm): 8
General purpose tool: YS-1614
Material/Finish: Terminal/Oxygen-free copper (C1020)/Electrolytic tin plating, Insulator/Nylon
Country of Origin: Japan
Code number: 422-5040
