Cloud generation experiment device CH-10N 146-475 1 unit

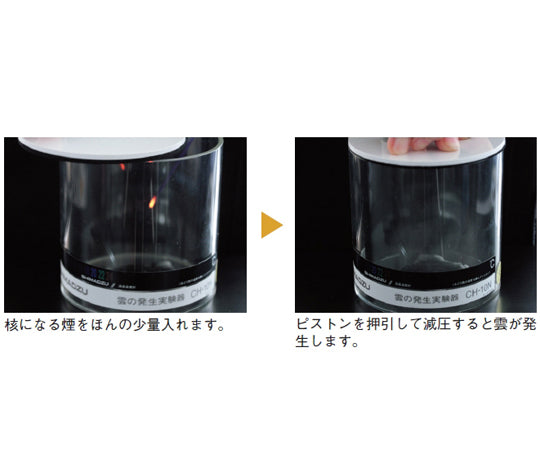

You can learn how clouds are created and rain falls. Clouds can be generated by placing water-soaked felt in the chamber and reducing the pressure inside the chamber using an intake and exhaust pump. The intake and exhaust pump uses a syringe which has few moving parts and has high intake capacity and reliability. The liquid crystal temperature sheet is highly sensitive to changes in temperature. You can clearly see how the temperature drops by 2 to 4 degrees Celsius due to adiabatic expansion. In the experiments, smoke from incense sticks and the like is used as condensation nuclei, and an included smoke filter prevents the tar in the smoke from fouling the intake and exhaust valves. Repeated experiments can be performed quickly. Observation tank: transparent acrylic, size: outer diameter φ100 × H100mm Intake and exhaust pump: 50mL syringe, connecting tube: intake valve, smoke filter Liquid crystal temperature sheet: 0 to 50°C (in 2°C increments) Accessories: Humidifying felt Product code: 146-475
