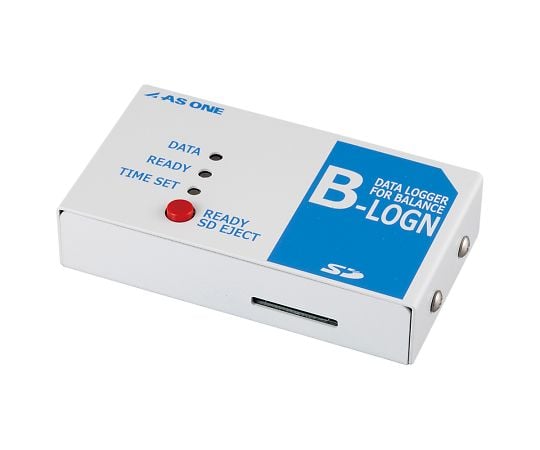

Data logger for electronic balances B-LOGN 1 unit

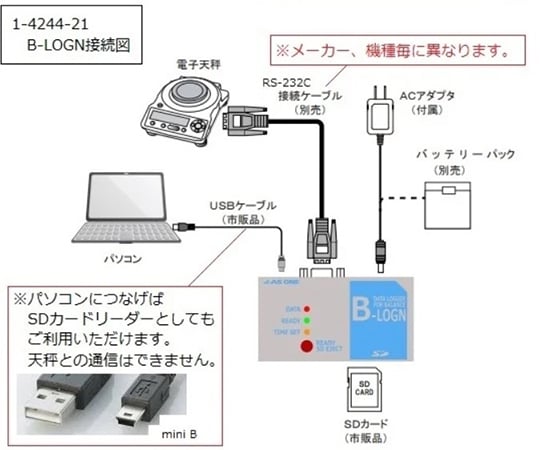

Measurement data from a balance equipped with RS232C output can be saved in CSV format on an SD card. Even if the balance itself does not have a clock, the data logger's built-in clock can be used to time all acquired data. By changing the cable, it can be adapted to the balance specifications of each manufacturer. A new file is created each time you press the switch, so one SD card can be shared by multiple people (up to 100 files). By using a separate USB cable, you can also access data directly from the SD card inserted in the main unit. Save measurement data to SD card using RS232C output! Main unit Size: 105 x 58 x 22mm (excluding protrusions) Interface: RS232C Connector: D-Sub 9-pin male Communication speed: 1200/2400bps Communication data length: 7 bits (with parity)/8 bits (without parity) switchable Stop bit: 1 bit Delimiter: CR or CR+LF Number of data items per file: Maximum 60,000 items Number of files per folder: 100 Recording interval: 1 second or more Power supply: AC100-240V 50/60Hz (AC adapter included), USB Internal clock battery: CR1220 (included for testing) Supported SD cards: Up to 32GB (SDXC not supported) The troubleshooting cable compatibility chart can be downloaded from the Web. *Connection cable, SD card, and USB cable are not included with the main unit.
