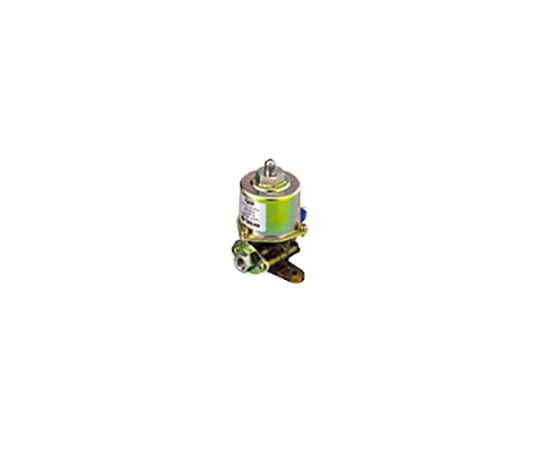

Electromagnetic pump TG50P 1 unit

The AC power is half-wave rectified by a rectifier element (diode) and applied to the coil, generating an intermittent magnetic force that moves the plunger up and down. Operating voltage: AC100V 50/60Hz Power consumption: 28/24W Liquid used: Water Standard suction head: 0.5mH2O Size: 50×100mm Connection port: Suction port (bottom) G1/8 female, Discharge port (top) G1/8 male Maximum flow rate: 200mL/min (0.4MPa) Maximum pressure (Mpa, when blocked): 0.7
