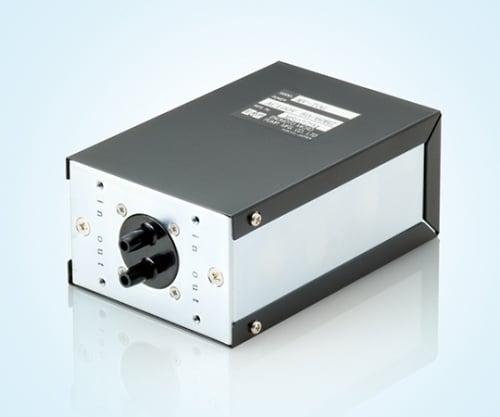

Electromagnetic air pump, dual-use suction and exhaust type MV-70G, 1 unit
Electromagnetic air pump, dual-use suction and exhaust type MV-70G, 1 unit
Regular price
¥17,710
Regular price
Sale price
¥17,710
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The rubber material of the gas contact part can be changed to suit the fluid.
It is also possible to handle different voltages.
RoHS compliant. Maximum discharge flow rate: 8L/min or more
Maximum discharge pressure: 14.7kPa or more
Maximum vacuum attainment: -13.3kPa or less
Rated voltage: AC100V
Rated current: 0.13A
Insulation type: A
Ambient temperature: 0℃ to 40℃
Gas contact material: CR/PF
Connection diameter: φ6mm
Mass: 0.7kg
