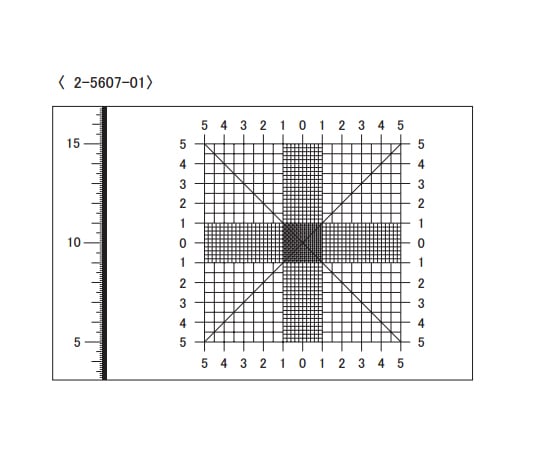

This is a grid gauge with a minimum size of 0.1 x 0.1 mm.
It can be applied to all types of measurements and inspections.
Made of polyester, it is easy to handle.
As a calibration sheet, it is useful for checking the accuracy of the reference scale of measuring equipment and the screen display scale, and for comparison and certification.

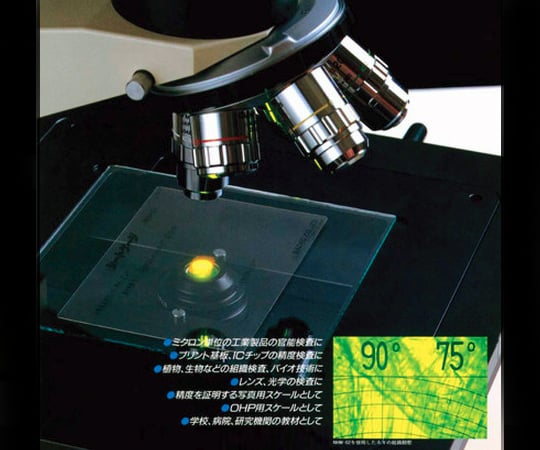

It is used in many industries as an inspection and observation scale for industrial, schools, hospitals, research institutes, biotechnology, etc. Type: Section gauge
Scale unit (mm): Minimum □0.1×0.1

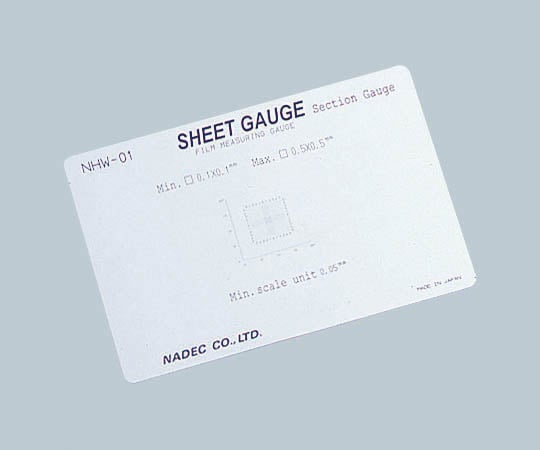

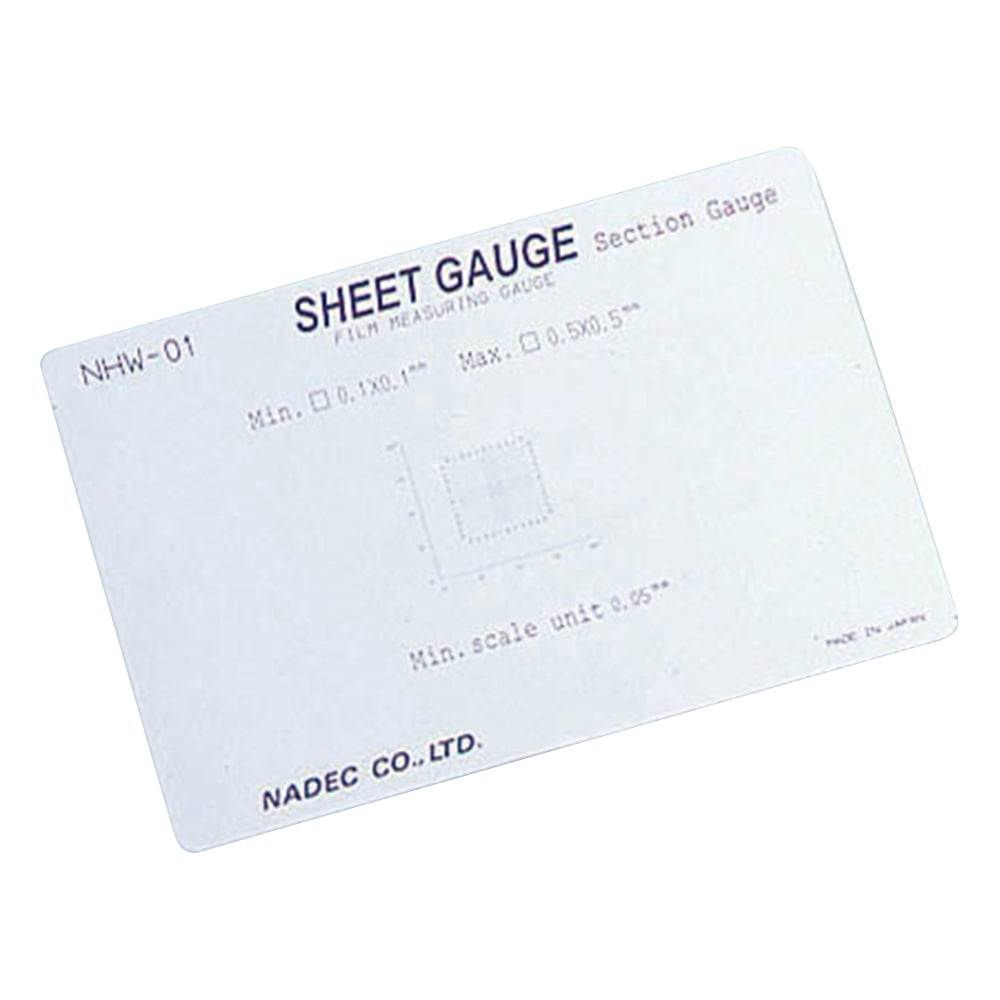

Sheet Gauge
Material: Polyester
Size: 75 x 105 mm
Pattern accuracy: Within ±0.004mm (dimensions are at the center of the line width)
Line width: 0.006 to 0.008 mm
Applications: Especially for squareness, parallelism, eccentricity, area, etc.
Sheet thickness: 0.175mm
