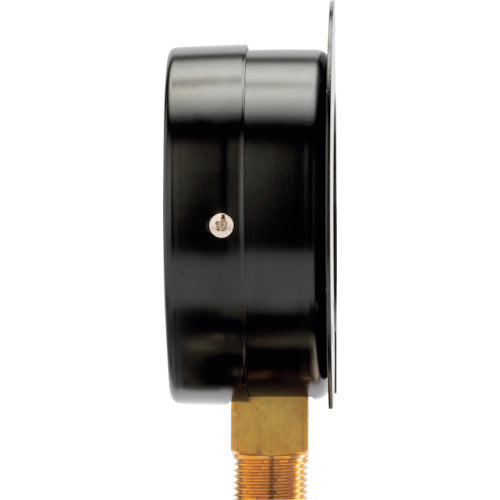

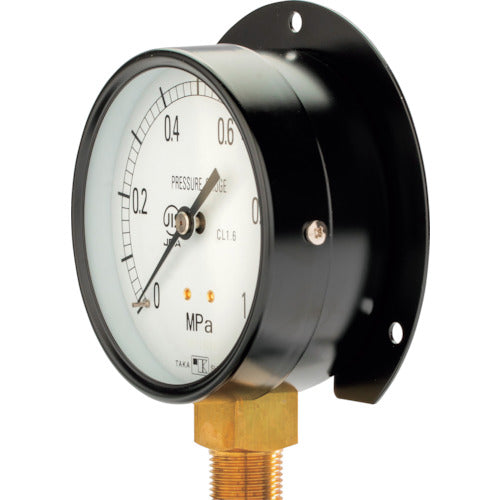

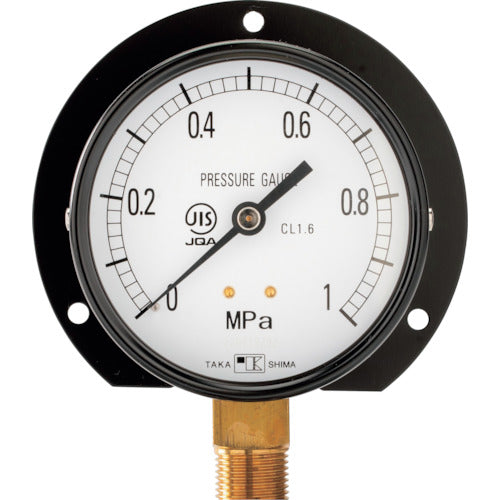

Catalog number: 1023025 Features: ● Can be widely used as a basic pressure gauge. ● A highly reliable pressure gauge with a proven track record. ● Manufactured based on the JIS B7505 Bourdon tube pressure gauge standard. Applications: ● General use, indoor use. Specifications: ● Pressure range (MPa): 0.0 to 0.25 ● Minimum scale (MPa): 0.005 ● Designation: ST B G3/8 75 x 0.25MPa ● Shape: Type B ● Outer diameter (mm): 75 ● Measurement fluid: Gas, liquid ● Wetted part material: Stock: Brass (C3604), Bourdon tube: Brass (C2700/C2680) ● Precision: ±1.6%FS ● Connection screw: G3/8 Material/Finish: ● Outer frame material: SPC, black paint
