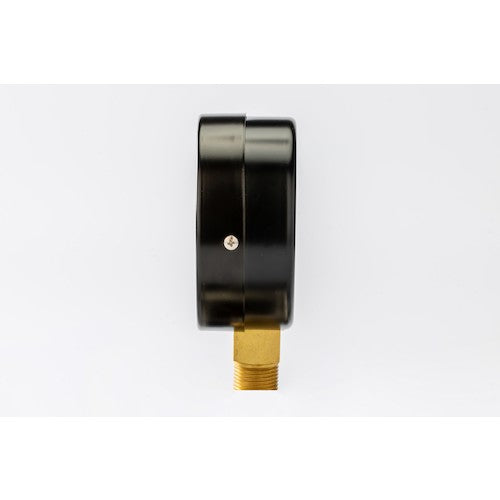

Catalog number: 102290140 Features: ●Basic pressure gauge manufactured based on the JIS B 7505 Bourdon tube pressure gauge standard. ●Excellent durability. Applications: ●Can be used for steam. Specifications: ●Pressure range (MPa): 0.0 to -0.1 ●Minimum scale (MPa): -0.002 ●Name: ST AM R3/8 75 x -0.1MPa S1 ●Shape: Type A ●Outer diameter (mm): 75 ●Measurement fluid: Steam ●Liquid contact material: Stock: Brass (C3604), Bourdon tube: SUS316 ●Accuracy: ±1.6%FS ●Connection screw: R3/8 Material/Finish: ●Outer frame material SPC, black paint
