DATALOGIC

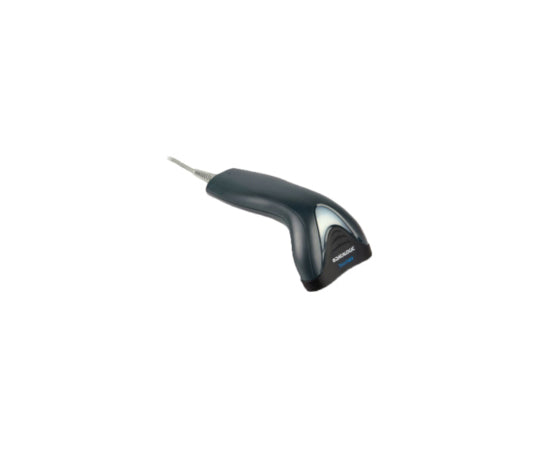

High performance CCD barcode reader with stand TD-1100-BK-65K1 1 piece
High performance CCD barcode reader with stand TD-1100-BK-65K1 1 piece
Regular price
¥12,870
Regular price
Sale price
¥12,870
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
This is an OPOS/JAVAPOS compatible scanner that offers high performance, high quality, and excellent cost performance.
The CCD touch reading system allows for comfortable reading of 1D barcodes using a 1D barcode scanner.
Comes with a 5-year warranty for peace of mind after purchase.
Lightweight model weighing 130g. Current value
Standby/Idle (nominal): 20mA@5VDC
Operating (rated): <100mA@5VDC
Input voltage: 5VDC +/-0.5V
Interface: USB (HID/VCP/OEM)
Light source: Illumination: 640nm LED
Minimum PCS value: 25%
Roll (Tilt): +/- 45°
Pitch: +/- 65°
Yaw (skew): +/- 70°
Read indication: Buzzer (tone/volume adjustable), Read confirmation LED
Maximum resolution: 0.102mm/4mils
[DOF (rated)]
Code 39: 7.5mils: 0~8.1cm/0~3.2in
Code 39: 10mils: 0~12.0cm/0~4.7in
EAN13: 13mils: 0~15.0cm/0~6.0in
1D Barcodes: All standard barcodes including GS1 DataBar™
Stacked Codes: GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional
Operating temperature: 0-50°C
Storage temperature: -20 to 70°C
Humidity: 5 to 95% RH (no condensation or freezing)
Resistance to ambient light: 0 to 20,000 lx
Drop resistance: 1.5m (repeated drops onto concrete surface)
Anti-static Non-destructive: 16kV
Dust and water resistance: IP30
Dimensions: 16.0 x 8.4 x 5.8cm
Weight: 130g
