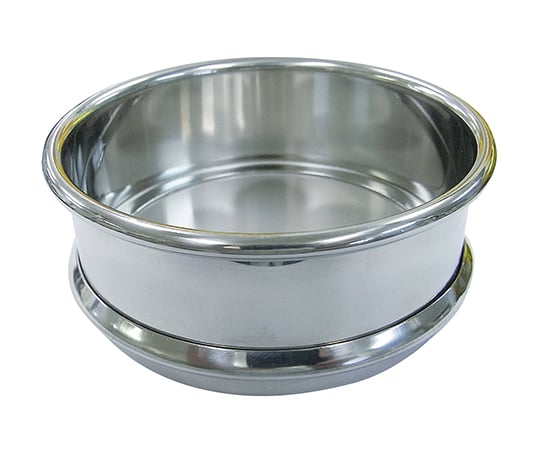

High-precision electroformed sieve (nickel filter) (JIS) Aperture size 10μm Pitch 21μm S10H30 (JIS) 1 piece

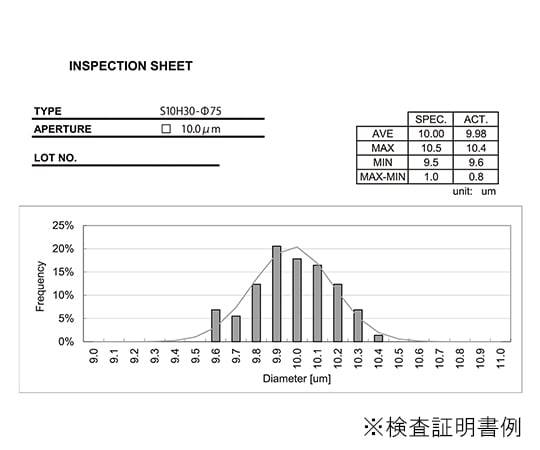

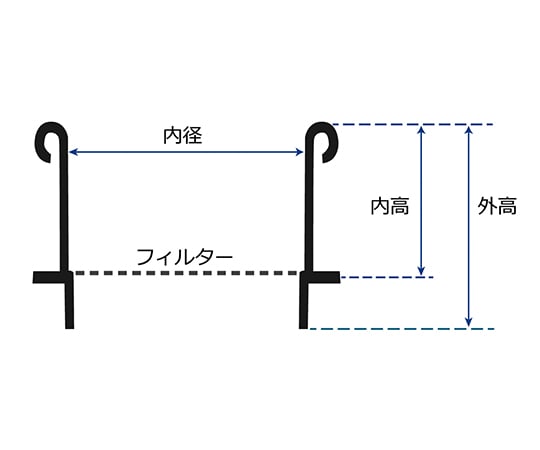

This is a high-precision sieve made possible by combining X-ray lithography technology and advanced electroforming technology. The sieve has no mesh in the mesh part, allowing for high speed dispensing and preventing powder from accumulating in gaps. By using highly corrosion-resistant materials, it can also handle corrosive powder particles. It comes with a 100% inspection certificate, so you can use it with confidence. Opening size (μm): 10 Pitch (μm): 21 Material: Filter: Nickel, Frame: Stainless steel (SUS304) Frame standard: JIS Z8801-1 (φ75mm) compliant Hole shape: □ Hole diameter tolerance: ±0.5μm Accessories: Inspection certificate Inner diameter (mm): 75 Inner height (mm): 20 External height (mm): 26 Material: SUS304 * Hole shape ○ is also available. *The H50 series, which has a thicker, more durable mesh and a lower opening rate, is also available. *Support mesh (0.21mm□1.8mmP) can also be added. Please contact us for more information.
