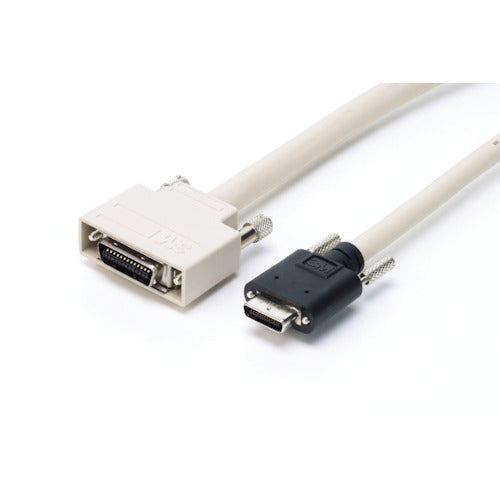

3M Camera Link PoCL Cable Assembly 3m 1MB26-L560-00C-300 1 piece

Catalog number: 1MB26-L560-00C-300 Features: ●A cable harness that complies with the PoCL standard, a transmission standard for industrial digital cameras that integrates a camera power supply line. ●Video data output, control, and power supply are possible with a single cable, resulting in less wiring and space savings compared to wiring for conventional Camera Link standards. ●A full configuration product that complies with the standard. Can be used for high-speed, high-resolution fixed applications. Applications: ●Cable harness for connecting industrial cameras Specifications: ●Length (m): 3 ●Camera side connector: SDR⇔MDR/Straight ●Board side connector: SDR⇔MDR/Straight ●Type: Pocl/Fixed/Full Configuration ●Cable color: Beige ●Connector: SDR, 26-core, straight ●Connector: MDR, 26-core, straight ●No designation of transmission direction on the camera side or board side. Material/Finish: ●Polyvinyl chloride (PVC) ●Foamed polyethylene
