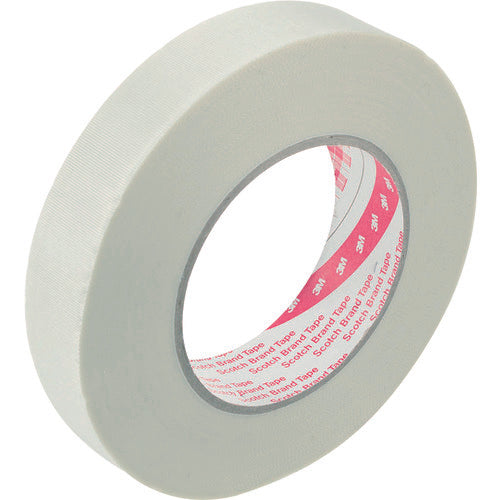

3M Glass Cloth Electrical Insulation Tape No. 69 12X20 69 12X20 1 roll

Catalog number: 69 12X20 Features: Uses an adhesive that is resistant to copper corrosion. Heat curing provides stronger adhesion. Uses: ●For fixing, bundling and insulating motor and transformer coils ●For insulating and protecting heat-resistant wires Specifications: ●Color: White ●Width (mm): 12 ●Length (m): 20 ●Thickness (mm): 0.18 ●Adhesive strength (N/10mm): 4.4 ●Tensile strength (N/10mm): 310 ●Operating temperature range (℃): 200 ●Conformity standards: UL (File E17385) MIL-1-19166C ●Dielectric breakdown strength (kV/mm): 3 ●Paper tube size (mm): 35 ●Maximum tape outer diameter (mm): 110 ●Flame retardant (UL510) ●Adhesive strength: 4.4N/10mm ●Tensile strength: 310N/10mm ●Operating temperature range: 200℃ ●Dielectric breakdown strength: 3kV Material/Finish: ●Base material: Glass cloth ●Adhesive: Thermosetting silicone type Note: ●This product is not intended for general consumers, so the labels and instruction manuals are not written or included for general consumers.
