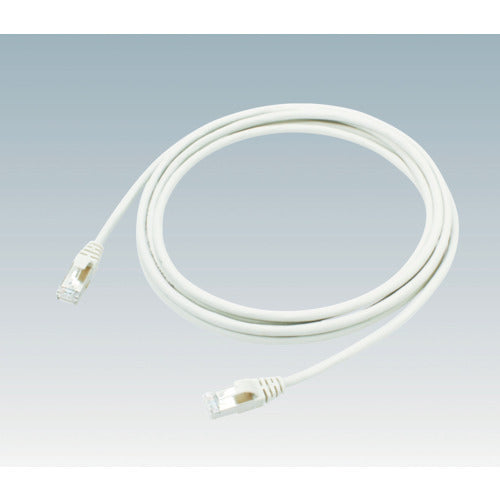

3M Shielded Ethernet Cable Cat5e Compatible FTP Type 1m VOL-5EFLB-L1-GY-IC 1 piece

Catalog number: VOL-5EFLB-L1-GY-IC Features: ● A thin cable with latch breakage prevention protector that is easy to lay. ● Environmentally friendly LSZH (Low Smoke Zero Halogen) type. Applications: ● FA equipment connection. ● Security systems. ● Amusement equipment. Specifications: ● Cable type: FTP (single shield) ● ​​Number of poles: 8 poles ● Color: Ivory ● Total length (m): 1 ● Rated temperature: -20 to 60°C (Installation: 0 to 50°C) ● Stranded wire ● Allowable bending radius: 8 times the jacket outer diameter (Installation: 4 times the outer diameter) ● DC resistance: 145Ω/km or less at 20°C ● Insulation resistance: 5000MΩ/km at 20°C ● Characteristic impedance: 100±15Ω (1 to 100MHz) Material/Finish: ● Cable shield: Aluminum foil ● Cable boot: PVC
