3M Scotchlok 560B U-element connector (500 pieces) 560B 1 bag

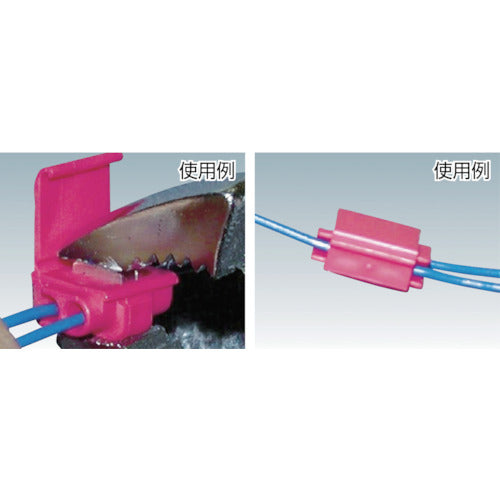

Catalog number: 560B Features: ●The spring action of the U-element ensures a secure connection, and it is used in car navigation and ETC in-vehicle devices. ●Since there is no need to cut or remove the insulation of the wire, the only tool required is a pair of pliers. Applications: ●Connection and branching of wires connected to power and signal circuits in industrial and transportation equipment. Specifications: Color: Blue; Suitable wire (AWG): 18-16 (solid wire), 18-14 (stranded wire); Suitable wire (copper wire) solid wire (mm): 1.0-1.2; Suitable wire (copper wire) stranded wire (mm2): 0.75-2.0; Rated voltage (V): 600V; Rated voltage: 600V; Rated operating temperature: 105°C; Standard: UL486C (File number E23438); Allowable current: #18AWG...7A, #16AWG...10A, #14AWG...15A CSA standard product; UL94-V2, CSA standard product; Material/Finish: Terminal (element): Brass, tin-plated; Insulating cover: Flame-retardant polypropylene
