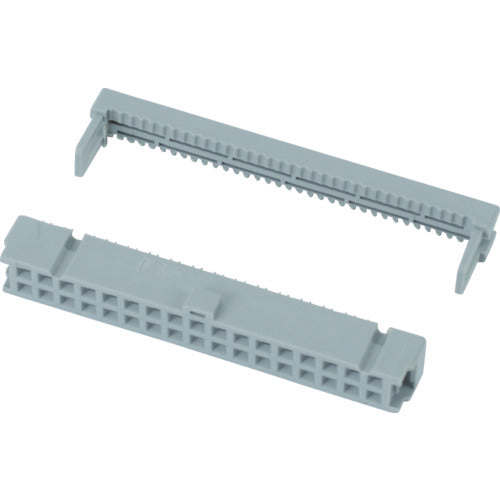

3M Socket Connector, 50 poles, 7950-B500 FL 1 S

Catalog number: 7950-B500 FL Features: ●Can be connected to 1.27mm pitch flat cable by pressure welding at once, also supports daisy chain. Applications: ●For connecting boards of general industrial equipment and various units. Specifications: ●Number of poles: 50 ●Color: Gray ●Length (mm): 68 ●Width (mm): 6 ●Height (mm): 6.5 ●Compatible wire (AWG): #28 stranded wire ●Compatible connectors: Box header, open header, low profile header, V low profile header, two-tier header, click plug connector, and connectors compatible with these ●Compatible strain relief: 3448-7950 ●Open end type ●No adhesive on the back side ●One nose in the center to prevent incorrect insertion ●Contact parts gold-plated to a thickness of 0.2 μm or more (others nickel-plated) ●RoHS compliant Material/Finish: ●Glass-reinforced polyester Set contents/Accessories: ●1 each of cover and body
