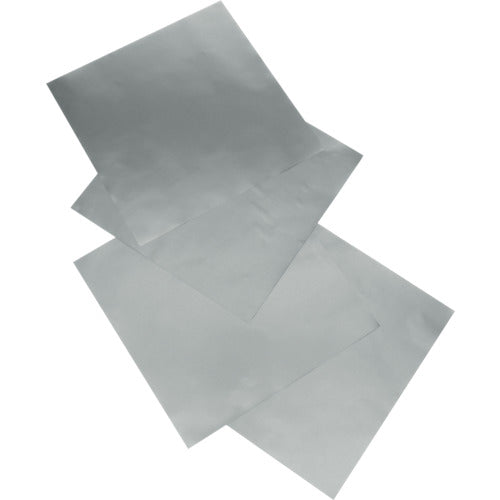

3M Noise Suppression Sheet EM25TP 342X350 EM25TP-0050 342X350 1 sheet

Catalog number: EM25TP-0050 342X350 Features: ●A halogen-free noise suppression sheet with an acrylic adhesive attached to a base material of soft magnetic powder kneaded into polymer resin. ●This product is effective in the range of 5MHz and above, and is particularly effective in suppressing electromagnetic noise at 100 MHz-3 GHz. Applications: ●Electromagnetic noise countermeasures in the MHz band. ●Electromagnetic wave shielding countermeasures for various electronic devices. Specifications: ●Main body dimensions (mm) length x width: 342 x 350 ●Magnetic polymer thickness (μm): 50 ●Electrical resistance: 2 x 104 Ωm ●Magnetic permeability (@1MHz) 250 ●Operating temperature: -25 to 90°C Materials/Finish: ●Base material: Polymer resin containing soft magnetic powder Note: ●This product is not intended for general consumers, so the labels and instruction manuals are not written or included for general consumers.
