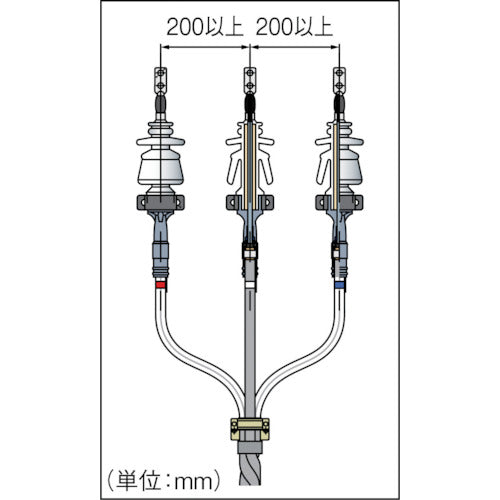

3M High-K Insulator 2-EM (Salt Resistant) CVT38/60SQ Cable Kit HGT 60G EM 1 S

Catalog number: HGT 60G EM Features: ●After inserting the terminal body into the cable, simply crimping the terminal completes most of the work. ●There are very few tape wrapping points, making installation easy. ●Since silicone grease (lubricant) is built into the terminal body, you can work smoothly without getting your hands or parts dirty. ●Since the terminal body has a built-in grounding clamp, you can ground the cable at the same time as inserting it. ●Since there is no protective plug on the terminal body, there is no need to pull out the protective plug. ●The O-ring seal built into the bottom of the terminal maintains airtight performance. ●Simply attach the terminal body and no additional waterproofing such as wrapping the outer layer with tape is required. ●The kit components are halogen-free and lead-free, so it can also be used with eco-cables (EM cables). Applications: ●Terminals for 6600V CVT, CVT(EE), and EM-CET cables. Specifications: * Suitable cable conductor size (mm2): 38, 60 * Salt-resistant * JCAA K 1301 standard product (No. 04001) Set contents/accessories: * Terminal body x 3, copper tube crimp B terminal (with bolts and nuts) x 3, terminal cover x 3, 3M [TM-jo] fit tape (5 m) x 1 roll, No. 1245 copper foil tape x 3 sheets, No. 13 semi-conductive tape (700 mm small roll) x 1 roll, tin-plated soft copper wire x 1, phase color tape (red, white, blue) x 1 set, bracket (with installation label) x 1, rubber spacer x 1, installation tag/nylon rope x 1 set, work gauge x 1
