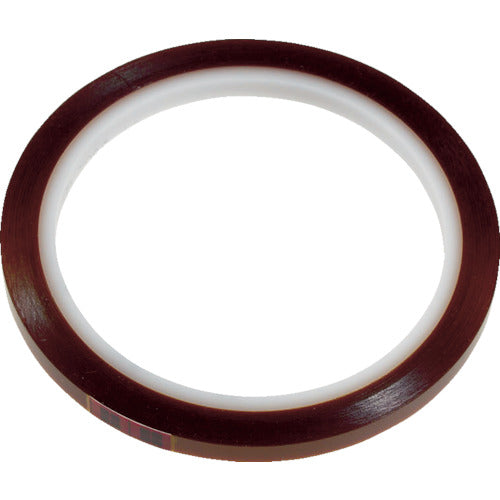

3M Polyimide Electrical Insulation Tape 92 9mm x 32.9m 92 9 1 roll

Catalog number: 92 9 Features: ●High heat resistance. ●Uses an adhesive that does not corrode copper. ●By heat curing, it adheres more firmly. Applications: ●For insulation applications that require heat resistance and thinness. ●For insulation of coils, transformers, and capacitors. ●For masking solder plating. Specifications: ●Color: Orange ●Width (mm): 9 ●Length (m): 32.9 ●Thickness (mm): 0.08 ●Adhesive strength: 2.8N/10mm ●Tensile strength: 53N/10mm ●Flame retardant (UL510 standard compliant product) ●UL standard compliant (File E17385) ●UL temperature rating: 180℃ Material/Finish: ●Base material: Polyimide film ●Adhesive: Silicone type (heat curable) Note: ●Due to the nature of the product, there may be a misalignment between the tape body and the core of the tape for narrow width products, but this does not affect the quality.
