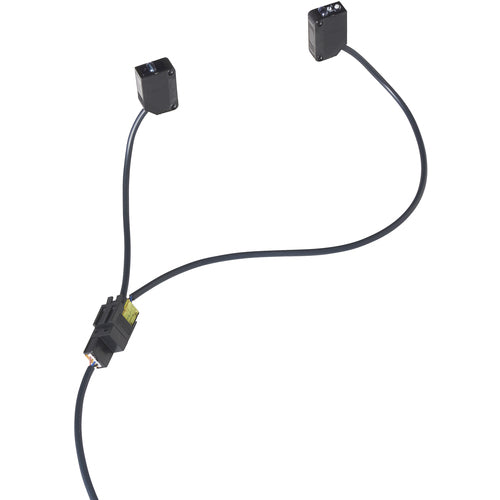

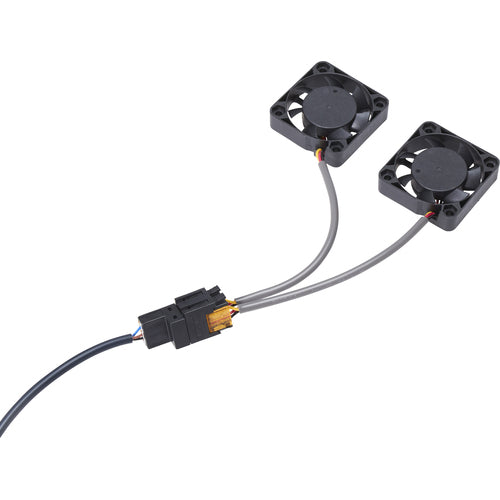

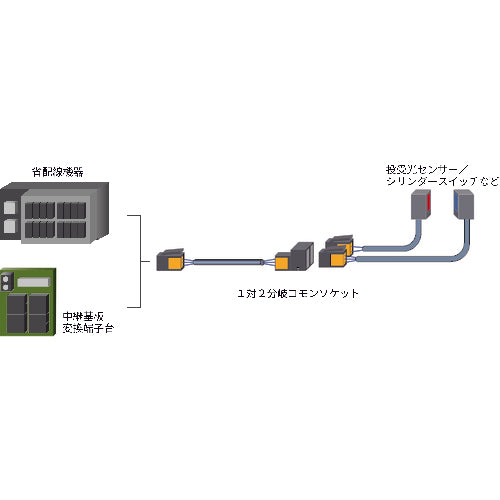

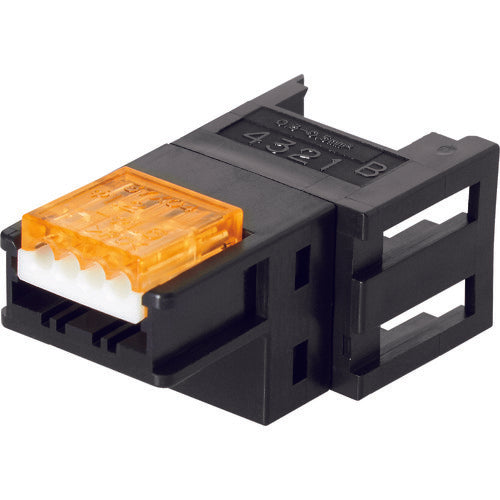

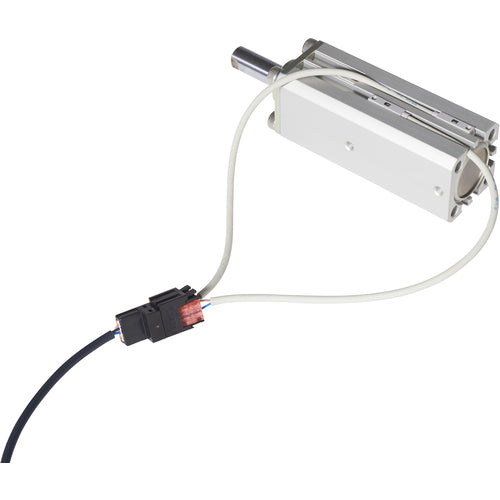

Catalog number: 37C04-3163-000 FL Features: ●Reliable branch wiring design can be designed without special processing such as double crimping. ●A socket connector that can branch 1 to 2 by connecting two mini clamp plug connectors. Applications: ●For power branching in wiring of sensors used in pairs such as light emitting and receiving sensors and cylinder switches. Specifications: ●Number of poles: 4 ●Color: Body: Black Cover: Orange ●Compatible wire (AWG): AWG26-24 ●Operating temperature range (℃): -20 to 85 (when current is 1A) / -20 to 75 (when current is 2A) / -20 to 60 (when current is 3A) *No condensation or water droplets ●Outer diameter of coating (mm): φ 1.2 - 1.6mm ●Maximum rated current (A): 3.0A ●Cover color: Orange ●Outer diameter of coating: 1.2 to 1.6 mm ●Applicable wire (AWG): AWG26-24 ●Standard type
