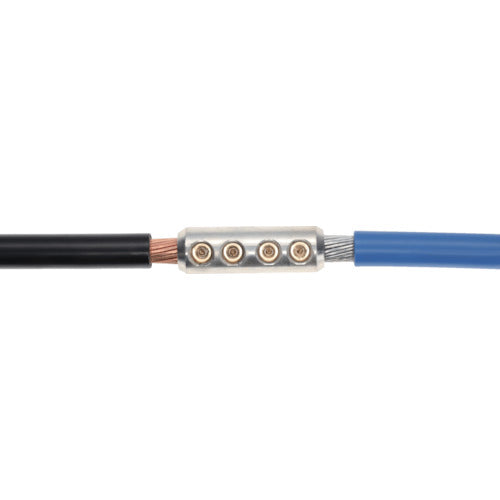

3M Cold Shrink Tube Connection Kit for Low Voltage Aluminum Cable YS06C-N5-60/250-EM YS06C-AL-N5-60/250-EM 1 S

Catalog number: YS06C-AL-N5-60/250-EM Features: ●Low voltage aluminum cables and copper cables can be connected uniformly in a short time on site. ●Shear bolt connectors are designed to connect and fix by tightening the screw attached to the main body and contacting the conductor. ●The connector screw is designed to break when it reaches the specified torque (when the proper connection is made), so no special torque management is required. ●No crimping or compression tools are required when attaching the connector to the aluminum cable, and it can be installed with a commercially available impact driver (maximum tightening torque 217N・m or more). Applications: ●For connecting 600V aluminum cables and copper cables. ●For connecting the aluminum cable trunk line and the copper cable on the distribution board side of factories, large logistics warehouses, and solar power plants. Specifications: Color: Black; Suitable cable conductor size (mm2): 60-250; Finished outer diameter of connection (mm): 124; Die diagonal dimension: 6; Commercial frequency voltage: Withstands 3.5 kV/10 minutes (1.0 kV/10 minutes after current temperature rise). Meets the straight connection section of JCAA K1101 "Connection performance standard for 600V cross-linked polyethylene insulated power cables" and the tensile load aluminum conductor section of JCAA K1001 "Conductor connection performance standard." Material/Finish: ● Cold shrink tube: EPDM rubber ● Shear bolt connector: Aluminum alloy body with tin plating and brass and steel screws ● Insulating self-adhesive tape: EP rubber Set contents/Accessories: ● Operating instructions x 1 ● Cold shrink tube x 1 ● Shear bolt screw hole caps x 4-6 ● Centering ring x 2 ● Shear bolt connector x 1 Caution: ● This product is not intended for general consumers, so the labels and instruction manuals are not written or included for general consumers. ● Do not cut the tube for use.
