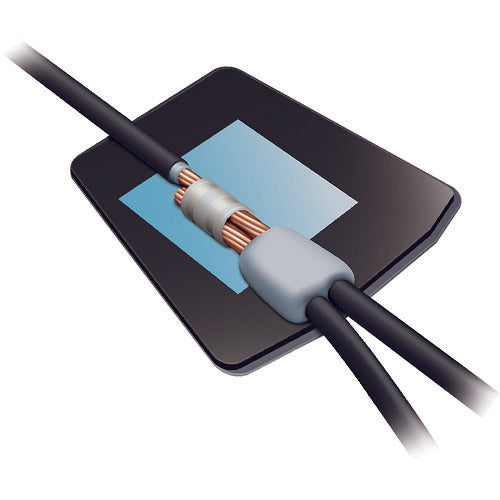

3M Sheet-wound connection material for low-voltage power cables Branch connection B06W-1-EM B06W-1-EM 1 PK

Catalog number: B06W-1-EM Features: ● The sheet winding method has been further improved, and the finish is beautiful with short construction times. ● The position of the putty layer has been optimized, so there is no overflow of putty after winding, and it prevents the putty from adjoining cables. ● No need to measure as the position can be adjusted using the cutouts in the sheet. ● The sheet has a built-in film layer to protect the conductor connection from external impact and prevent the sleeve from piercing. Applications: ● For protecting cables when connecting power cables in a straight line or branching. Specifications: ● Suitable cable conductor sizes (mm2): 3.5, 5.5, 8, 14, 22, 38, 60, 100 ● Width (mm): 155 ● Length (mm): 153 ● Suitable T-type connector size: T7 to T122 ● Sheet winding method ● Branch connection for single core Material/Finish: ● EPDM + Butyl + PE film Note: ● The size must be selected according to the cable size.
