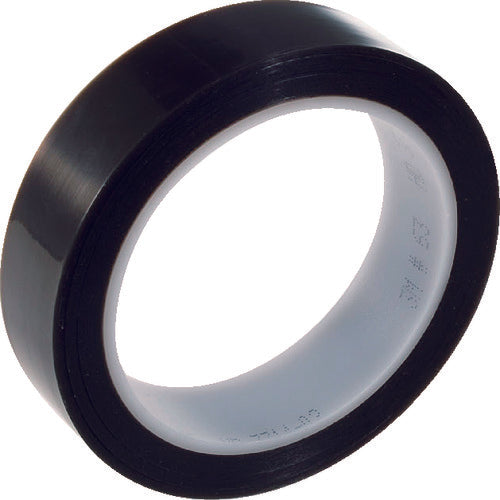

3M [Discontinued while supplies last] PTFE Electrical Insulation Tape No. 63 12X10 63 12X10 1 roll

Catalog number: 63 12X10 Features: ●Excellent chemical resistance, heat resistance, and solvent resistance. ●Uses an adhesive with high electrical insulation performance that does not corrode copper. Applications: ● For insulation in areas requiring solvent and chemical resistance ● For insulation of coils, capacitors, etc. Specifications: ● Color: Light brown ● Width (mm): 12 ● Length (m): 10 ● Thickness (mm): 0.09 ● Adhesive strength (N/10mm): 3.8 ● Tensile strength (N/10mm): 35 ● Operating temperature range (℃): 155 ● Compliance standards: UL (File E17385) ● Dielectric breakdown strength (kV/mm): 9.5 ● Paper tube size (mm): 35 ● Maximum tape outer diameter (mm): 93 ● Flame retardant (UL510) ● Adhesive strength: 3.8N/10mm ● Tensile strength: 35N/10mm ● Operating temperature range: 155℃ Materials/Finish: ● Base material: Fluorine resin (polytetrafluoroethylene film) ● Adhesive: Acrylic Note: ● This product is not intended for general consumers and therefore does not come with any labels or instruction manuals that are intended for general consumers.
