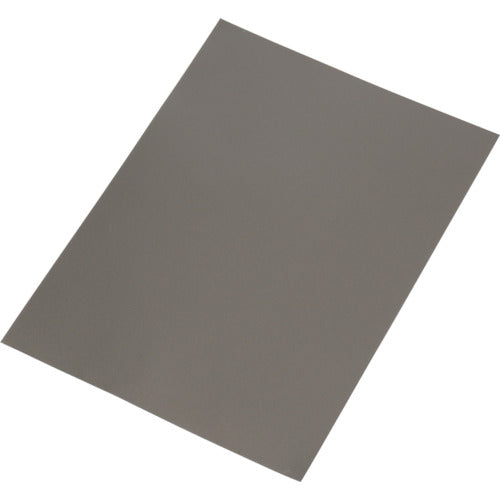

3M Noise Suppression Sheet AB1010B 210X297 AB1010B 210X297 1 sheet (while stocks last)

Catalog number: AB1010B 210X297 Features: ●A halogen-free noise suppression sheet with an acrylic adhesive attached to a base material of soft magnetic powder kneaded into a polymer resin. ●Highly effective at suppressing electromagnetic noise, especially at several GHz. Applications: ●Electromagnetic noise countermeasures in the GHz range. ●Electromagnetic wave shielding countermeasures for various electronic devices. Specifications: ●Main body dimensions (mm) length x width: 297 x 210 ●Base material thickness (mm): 0.10 ●Magnetic permeability (@1MHz) 25 ●Operating temperature range: -25 to 100°C Materials/Finish: ●Base material: Magnetic mixed polymer ●Adhesive: Acrylic pressure-sensitive adhesive (non-conductive) Note: ●This product is not intended for general consumers, so the labels and instruction manuals are not written or included for general consumers.
