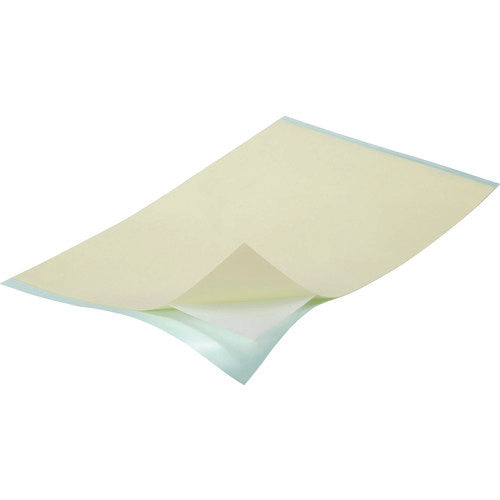

3M Thermally conductive double-sided tape (high adhesive strength type) VHR0601-03 A4 size VHR0601-03 200X300 1 sheet

Catalog number: VHR0601-03 200X300 Features: ●Can be used to fix heat-resistant parts in all fields. ●Since it is a double-sided tape composed only of adhesive, it fits well to the adherend and is easy to work with. ●Highly flame-retardant acrylic thermal conductive tape. ●Has high adhesive strength that can replace screw construction. ●Since it uses an acrylic adhesive, there is no need to worry about the adverse effects of siloxane gas. ●Since it has excellent thermal conductivity and adhesive strength, it can be used as a fixing tape for heat-resistant parts in all fields. ●Since it contains a base material, it is easy to process. ●Since it is a non-silicone material, there is no need to worry about poor contact due to siloxane gas. ●It has excellent flexibility and thermal conductivity, and has a strong adhesive strength of 20N/10mm. Applications: ●Adhesion of heat sinks and heat sinks to semiconductors and electronic parts. ●Fixing to heat sinks and metal parts of LED boards. ●For fixing electronic parts and heat sinks as a heat dissipation measure for CPUs, LED boards, etc. Specifications: Color: White Width (mm): 200 Thickness (mm): 0.3 Length (mm): 300 Flame retardant (UL94): V-2 Density: 1.5g/cm3 Thermal conductivity (W/mk): 0.6 90 degree peel adhesion: 20N/10mm (stainless steel) Adhesive strength: 20.0N/10mm Materials/Finish: Base material: Acrylic foam (VHR0601)/Copper foil (8926-02.025) Adhesive: Acrylic Note: This product is not intended for general consumers, and therefore the labels and instructions are not included with the product.
