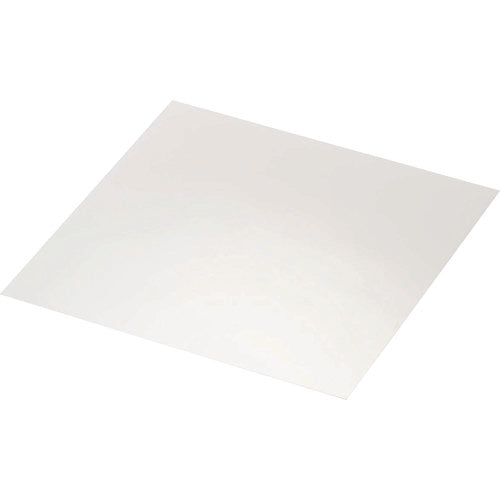

3M Thermally conductive double-sided tape 8926-020 100X100mm 8926-02 100X100 1P 1 bag

Catalog number: 8926-02 100X100 1P Features: ●Can be used to fix heat countermeasure parts in all fields. ●Since it is a double-sided tape composed only of adhesive, it fits well to the adherend and is easy to work with. ●Highly flame-retardant acrylic thermal conductive tape. ●Has high adhesive strength that can replace screw construction. ●Since it uses an acrylic adhesive, there is no need to worry about the adverse effects of siloxane gas. ●Since it has excellent thermal conductivity and adhesive strength, it can be used as a fixing tape for heat countermeasure parts in all fields. ●Since it contains a base material, it is easy to process. ●Since it is a non-silicone material, there is no need to worry about poor contact due to siloxane gas. ●It has excellent flexibility and thermal conductivity, and a strong adhesive strength of 20N/10mm. Applications: ●Adhesion of heat sinks and heat sinks to semiconductors and electronic components. ●Fixing to heat sinks and metal parts of LED boards. ●For fixing electronic components and heat sinks as a heat dissipation measure for CPUs, LED boards, etc. Specifications: Color: White Width (mm): 100 Thickness (mm): 0.2 Length (mm): 100 Thermal conductivity: 1.5 W/mK Specific gravity (25°C): 1.6 Dielectric breakdown strength: 15 kV/mm 90 degree peel adhesion (against stainless steel plate): 8 N/mm (0.2 mm thick) Shear adhesion: 104 N/cm2 (0.2 mm thick) Adhesive strength: 8.0 N/10 mm Material/Finish: Base material: Acrylic foam (VHR0601)/Copper foil (8926-02.025) Adhesive: Acrylic Note: This product is not intended for general consumers, and therefore the labels and instruction manuals are not included or written for general consumers.
