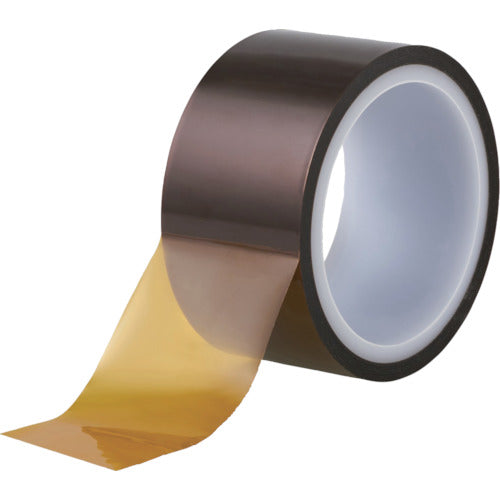

3M Heat-Resistant Polyimide Tape 7416Y 50mm x 50m 7416Y 50 1 roll

Catalog number: 7416Y 50 Features: ● A polyimide tape using a special acrylic adhesive. ● Because it uses a non-silicone adhesive, it is ideal for applications where siloxane gas or silicone migration is a concern, such as heat-resistant masking during solder reflow on electronic boards, temporary fixation, component protection, through-hole sealing, and lens protection. ● Since there is little adhesive residue on epoxy resin, it is suitable for manufacturing processes such as molding applications on the tape. Applications: ● Resin molding. ● Temporary fixation of components. ● Heat-resistant masking during solder reflow. Specifications: ● Color: Brown ● Width (mm): 50 ● Length (m): 50 ● Thickness (mm): 0.03 ● Heat resistance: 260°C 30 minutes ● Adhesive strength: 0.41N/10mm ● Reflow compatible ● With release film Material/Finish: ● Base material: Polyimide film ● Adhesive: Highly heat-resistant, cross-linked acrylic Note: ● This product is not intended for general consumers, so the labeling and instruction manual are not written or included for general consumers.
