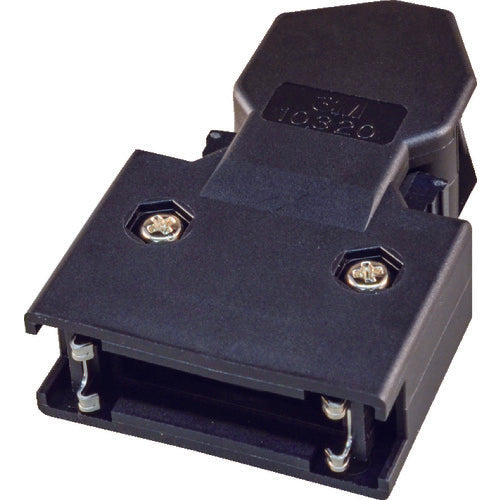

3M Wiring Connector Miniature Delta Ribbon System Non-Shielded Shell Kit Number of Poles 20 10320-56F0-008 1 S

Catalog number: 10320-56F0-008 Features: ●Industry standard MDR system for half-pitch I/O connectors. ●Identical two-piece structure that combines ease of assembly and robustness. ●60° right angle shell that saves space in the cable outlet. ●Compatible with solder plugs and normal pressure-welded plugs. Applications: ●FA and general industrial I/O. Specifications: ●Number of poles: 20 ●Color: Black ●Compatible plug: 10120-3000PE ●With ground plate ●Operating temperature: -55 to 85°C Materials/Finish: ●Shell body: Glass-reinforced polyester ●Cable clamp/cable clamp with ground plate: Stainless steel Set contents/Accessories: ●Shell body: 2 pieces ●Latch: 2 pieces ●Type with screw stopper M2.6 x 30 ●Cable clamp: 2 pieces ●Cable clamp with ground plate: 1 piece
