3M Kanto High-K Term 2-EM (for indoor use) CVT100SQ kit T6SA-RXT-I100 EM 1 S

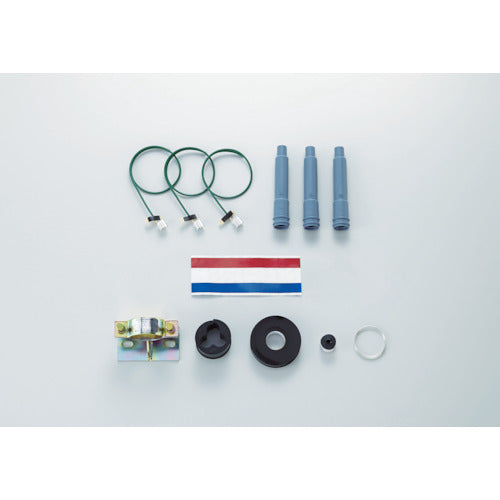

Catalog number: T6SA-RXT-I100 EM Features: ●Can be used for UAS and UGS. (Indoor use only) ●Silicone grease (lubricant) is built into the terminal body, allowing smooth operation without soiling hands or parts. ●Silicone rubber material is used for the terminal body to improve insertion workability. ●Airtight performance is maintained by the O-ring seal built into the bottom of the terminal, so additional waterproofing such as wrapping an outer layer of tape is not required. ●Solderless grounding clamp is used, eliminating the need for soldering the ground wire. ●Halogen-free and lead-free, can also be used with eco-cables (EM-CET cables). Applications: ●Terminals for 6600V CVT, CVT(EE), and EM-CET cables. Specifications: * Suitable cable conductor size (mm2): 100 * Type: Indoor use * Compatible with Tokyo Electric Power Company's high voltage service inlet wiring * JCAA K 1301 standard product (No. 11001, No. 11002) * Umbrella separate for outdoor use 100sq * For outdoor use Material/Finish: * Main body: Silicone rubber Set contents/Accessories: * Terminal body x 3, 3M [TM above] self-fusing insulating tape (fit tape) x 1 roll (10m), 3M [TM above] semi-conductive tape 13 x 1 roll, ground clamp (with putty) x 3, tin-plated soft copper wire x 1, phase color-coded tape (red, white, blue) x 1 set, multi-core bracket (with installation label) x 1, rubber spacer x 1, work gauge x 1
