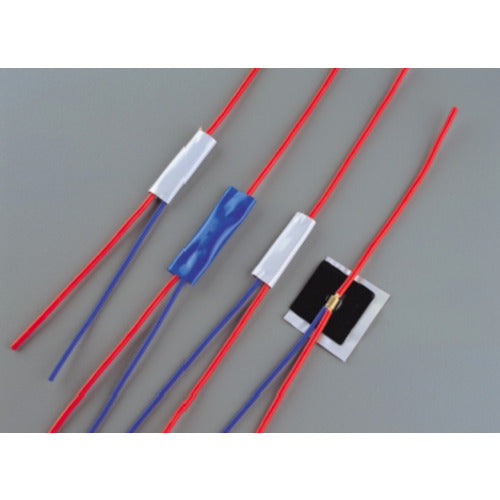

3M Electrical Insulation/Waterproof Pad EMS 3-60 2-Pack EMS 3-60 1 Bag

Catalog number: EMS 3-60 Features: ●Excellent waterproofing, moisture resistance, electrical insulation, weather resistance, and flame retardancy, protecting the branching part of the harness. ●Excellent workability allows installation in a short time. Applications: ●Manufacturing equipment, terminal boards, electrical wiring connections, etc. ●Wire harnesses in engine rooms ●Trailers, tractors, yachts, ships. Specifications: Color: Gray Width (mm): 50 Length (m): 47 Thickness (mm): 1.8 Adhesive strength (N/10mm): 21.6 Dielectric breakdown strength (kV/mm): 10 Insulation resistance: 1 x 10[[to the power of 6]] MΩ (ASTM D257) Mastic dimensions (mm): 38 x 38 x 1.6 Film dimensions (mm): 50 x 47 x 0.2 Operating temperature range (℃): 0 to 80 Applicable cable conductor size (mm[[to the power of 2]]): approx. 6.5 Lead-free Material/Finish: PVC Rubber Note: The applicable cable conductor size is a guideline for 2-2 connections. If there are many connections, the applicable size will be smaller than the guideline.
