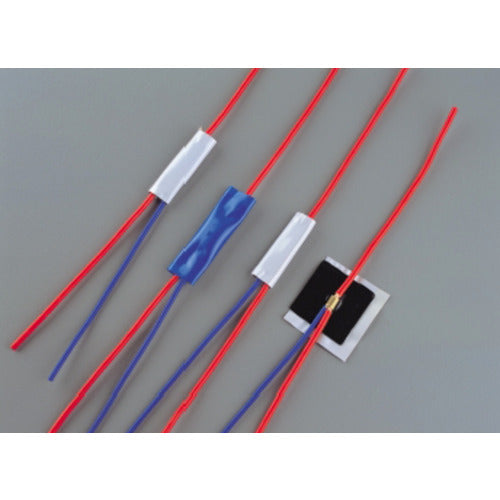

3M Electrical Insulation/Waterproof Pad EMS 3-90 2-Pack EMS 3-90 1 Bag

Catalog number: EMS 3-90 Features: ●Excellent waterproof, moisture-proof, electrical insulating, weather-resistant, and flame-retardant properties, protecting the branching part of the harness. ●Excellent workability allows for short installation times. Applications: ●Manufacturing equipment, terminal boards, electrical wiring connections, etc. ●Wire harnesses in engine rooms ●Trailers, tractors, yachts, and ships. Specifications: Color: White Width (mm): 50 Length (m): 47 Thickness (mm): 2.7 Adhesive strength (N/10mm): 21.6 Dielectric breakdown strength (kV/mm): 10 Insulation resistance: 1 x 10[[to the power of 6]] MΩ (ASTM D257) Mastic dimensions (mm): 38 x 38 x 2.5 Film dimensions (mm): 50 x 47 x 0.2 Operating temperature range (℃): 0 to 80 Applicable cable conductor size (mm[[to the power of 2]]): approx. 12 Lead-free Material/Finish: PVC Rubber Note: The applicable cable conductor size is a guideline for 2-2 connections. If there are many connections, the applicable size will be smaller than the guideline.
