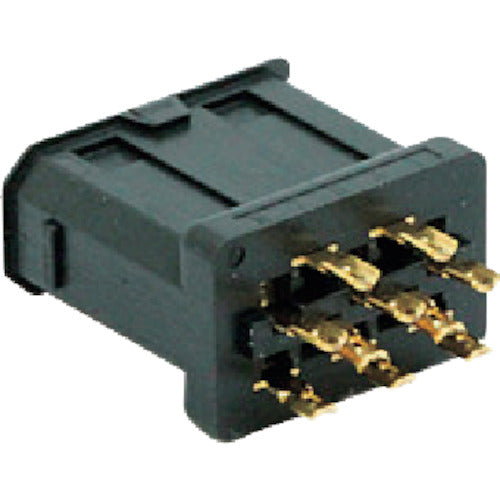

3M SCR Connector Wire Mount Receptacle 36210-0100 PL 1 pc

Catalog number: 36210-0100 PL Features: ● Bellows type contact with excellent resistance to twisting and vibration. ● 2mm contact pitch and special solder tail arrangement enable both compact size and compatibility with thick cables. Uses: ● Connecting various servo encoders Specifications: ● Number of poles: 10 ● Color: Black ● Compatible connectors: 36110-30000FD, 36110-1110PL, 36110-2220PE ● Compatible wire (AWG): #18 to 30 ● Compatible wire conductor diameter (mm): Outer diameter Φ2.8 mm or less (including shrink tube) ● Operating temperature range (℃): -55 to 85, 85% RH or less ● Rated current (A): Maximum 1/pole ● Applicable wire (AWG): 18 to 30 ● Allowable current (A): 1 ● Contact plating specifications: Contact area gold plating, wiring area gold flash plating ● All contacts can be wired with 0.75 mm2 wire Material/Finish: ● Nylon ● Copper alloy
