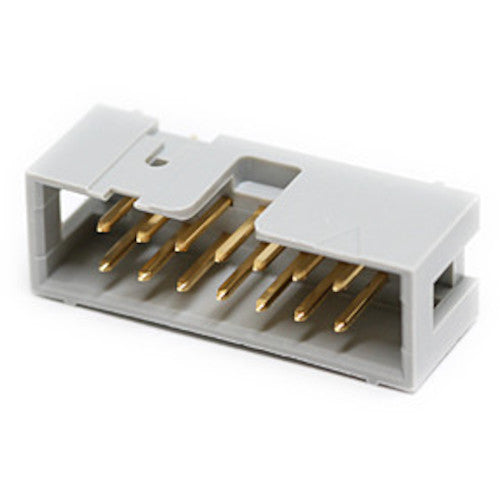

3M V-Low Profile Header, Straight Type, 7614-6002 PL, 1 pc

Catalog number: 7614-6002 PL Features: ● 4-sided molding protects the contacts and prevents the socket connector from being inserted backwards. ● When combined with a board mount socket, it allows board-to-board connection. Applications: ● For connecting boards between general industrial equipment and various units Specifications: ● Suitable board thickness (mm): 1.6 ● RoHS compliant ● Gold plating thickness at contact points 0.2 μm or more (others gold flash plating) Material/Finish: ● Glass reinforced polyester
