AGENT LB-200 Replacement Lever Handle 2 Spindle Type for Partition Lock AGLB200MAO 1 S

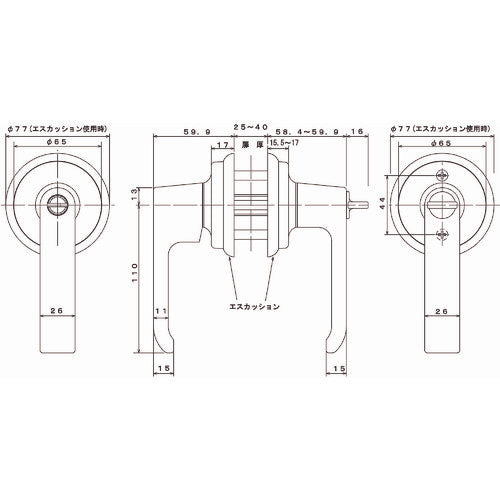

Catalog number: AGLB200MAO Features: ●Can be replaced from doorknob to lever handle. Ideal for barrier-free access. ●Comes with a luminous sticker that makes it easy to see where the key is inserted even in the dark. (LP, LS only) ●Comes with a Φ77mm escutcheon that can hide the marks of the previously installed round base. ●Comes with a stopper plate that prevents the lever from turning more than necessary. ●Uses the existing lock case, so it can be used with a variety of backsets. Applications: ●For office and factory doors. Specifications: ●Color: Silver ●Compatible door thickness (mm): 25-40 ●Type: 2-spindle type ●Width (mm): 26 ●Length (mm): 110 ●Round seat diameter (mm): 65 ●Mounting screw pitch (mm): 44 (horizontal direction) ●For partition lock (outside: lever with emergency unlocking, inside: lever with thumb turn) ●Silver painted Material/Finish: ●Lever/Round seat: Aluminum die-cast ●Key: Brass (nickel-plated) Note: ●Even if the model is compatible, it will not be compatible if the mounting screw pitch is other than 44 mm horizontally.
