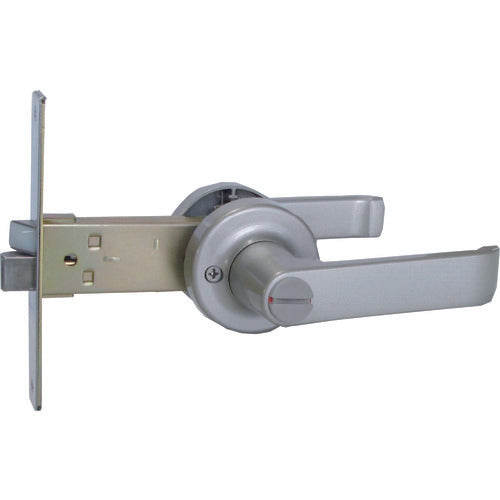

AGENT LC-1000 Lever Handle Replacement Lock B/S100 Display Lock AGLC1000HY 1 S

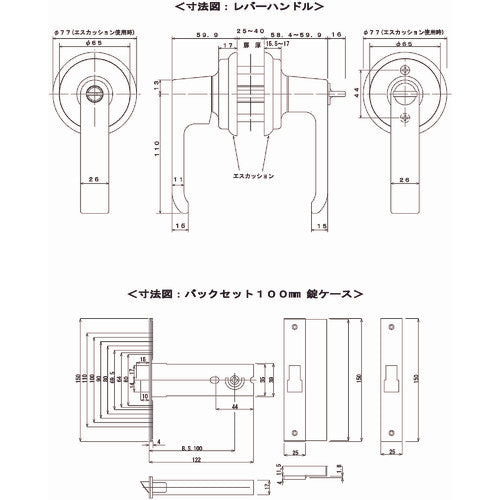

Catalog number: AGLC1000HY Features: ●Can be replaced from doorknob to lever handle. Ideal for barrier-free access. ●Comes with a luminous sticker that makes it easy to see where the key is inserted even in the dark. ●Comes with a Φ77mm escutcheon that can hide the marks of the previously installed round base. ●Comes with a stopper plate that prevents the lever from turning more than necessary. (Only for L-shaped front, LP and LS backset 100mm) Applications: ●For office and factory doors. Specifications: ●Color: Silver ●Backset (mm): 100 ●Case depth (mm): 122 ●Compatible door thickness (mm): 25-40 ●Type: Indicator lock ●Width (mm): 26 ●Length (mm): 110 ●Deadbolt (mm): 15 ●Round seat diameter (mm): 65 ●Mounting screw pitch (mm): 44 ●Indicator lock exterior: Lever with indicator and emergency unlocking device, interior: Lever with thumb turn ●Front screw pitch (mm): 60, 64, 69.5, 80, 90, 100, 110 ●Finish: Silver paint Material/Finish: ●Lever/Round seat: Aluminum die-cast ●Key: Brass (nickel plated)
