AION Kanefil R 500mm Nominal accuracy 200μm R-2850W 1 piece

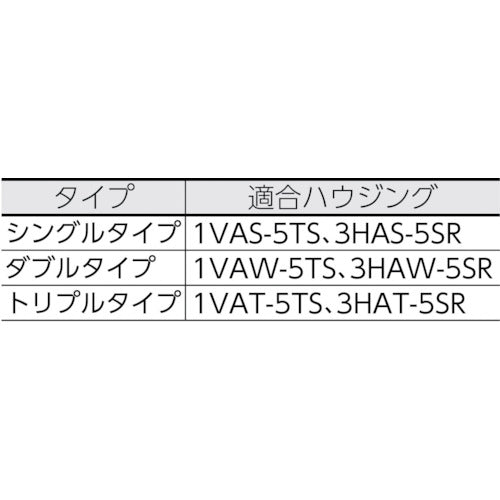

Catalogue number: R-2850W Features: *High porosity and sharp filtering performance, with excellent performance including a unique three-dimensional structure, making it effective for refining and regenerating liquids across the entire industrial sector. Applications: *Filtering resin products such as paints, inks, and adhesives, as well as intermediates and products of petrochemical products and chemicals. *Precise filtering of ceramics, magnetic materials, various coating materials, etc. *Filtering of machining oils, lubricating oils, cleaning solvents, etc. *Filtering of raw water, cleaning water, developing solutions, etc. Specifications: Filtration accuracy (μm): 200 Outer diameter (mm): 70 Length (mm): 500 Compatible housing: 1CAW, 1VAW-5TS, 3HAW-5SR Inner diameter (mm): 30 Maximum operating temperature: (non-aqueous) 80°C, (aqueous) 60°C Recommended replacement differential pressure: 0.20MPa Pressure resistance: (non-aqueous) 0.39MPa, (aqueous) 0.20MPa Inner diameter x outer diameter: 30 x 70mm Material/Finish: PVA sponge + melamine resin Caution: Make sure the filter is securely set in the housing before use. Use the filter while observing the pressure resistance, heat resistance, and replacement differential pressure.
