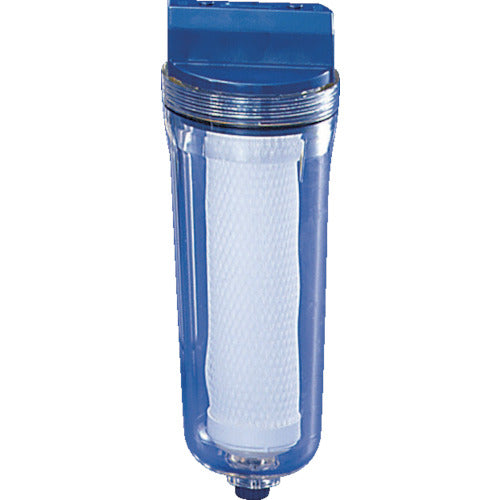

AION Filter Housing C Model 1CAT 1 unit

Catalog number: 1CAT Features: ●Lightweight, compact, high-quality plastic housing. ●Filtration status can be visually confirmed from the outside. Applications: ●Filtration of cooling water, cleaning water, and industrial water. Specifications: ●Outer diameter (mm): 121 ●Height (mm): 817 ●Connection diameter: PT3/4 ●Fitting interval (mm): 112 ●Design temperature (℃): 40 ●Design pressure (MPa): 0.49 (MAX) ●Compatible filter: FD/R/AW triple type series x 1 ●Design pressure: 0.49MPa (MAX) ●Design temperature: 40℃ ●Single-loading type Material/Finish: ●Head: ABS resin ●Housing: AS resin ●Gasket: Ethylene propylene rubber (EPDM) Caution: ●Use at or below the design pressure. ●Use at or below the design temperature.
