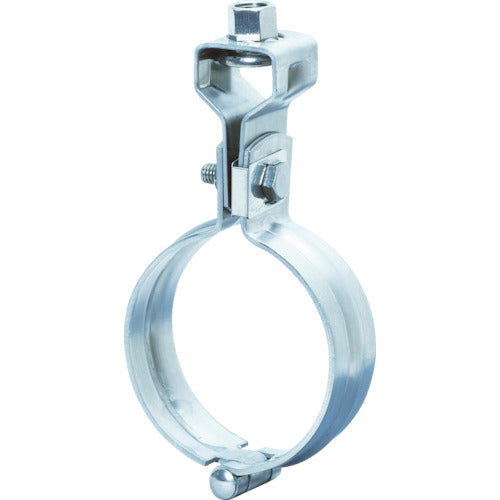

AKAGI Hanging Band "with Hanging Tank" W3/8-100A A10140-0113 1 pc

AKAGI Hanging Band "with Hanging Tank" W3/8-100A A10140-0113 1 pc

JAN：4560166761062 　
Akagi Piping Materials Construction and lighting supplies Pipe Support Fittings Pipework Equipment
¥288
¥288
Sale Sold out
Shipping calculated at checkout.

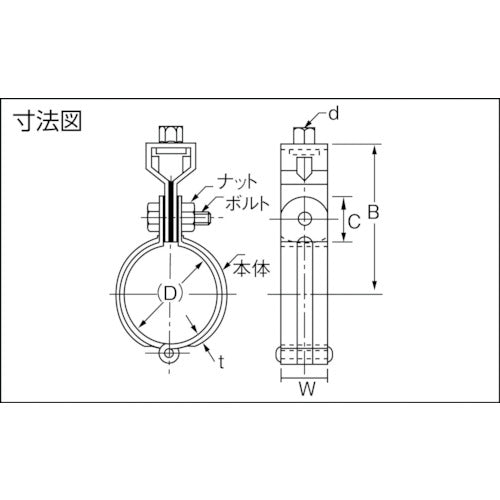

Catalogue number: A10140-0113 Features: ●Electric zinc plating finish. Applications: ●Support bracket for horizontally running suspended piping (SGP) on the ceiling. Specifications: ●Applicable pipe outer diameter D: 100A ●Applicable pipe outer diameter (mm): 114.3 ●Dimension (mm) t: 2.3 ●Dimension (mm) W: 25 ●Dimension (mm) B: 110 ●Dimension (mm) C: 26 ●Dimension (mm) d: W3/8 Material/Finish: ●Hot-rolled mild steel plate
