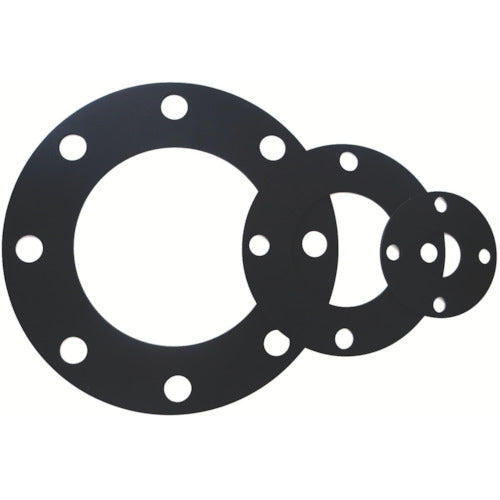

AK Flange packing for JIS 10K 100A NBR-100A-10K 1 piece

Catalog number: NBR-100A-10K Features: ●This rubber has excellent oil resistance and abrasion resistance. However, it is not weather resistant. Specifications: ●Thickness (mm): 3 ●Operating temperature range (℃): -20 to 80℃ ●Nominal diameter: 100A ●Nominal diameter (mm): 114.30 ●Hole diameter (mm): 19 ●Outer diameter: 210mm ●Operating pressure (K): 10 ●Nominal diameter A: 100 ●Number of holes (pcs): 8 ●Bolt hole center diameter (mm): 175 ●Nominal diameter B: 4 ●Outer diameter (mm): 210 ●Inner diameter (mm): 115 ●Thickness 3t Material/Finish: ●NBR rubber
