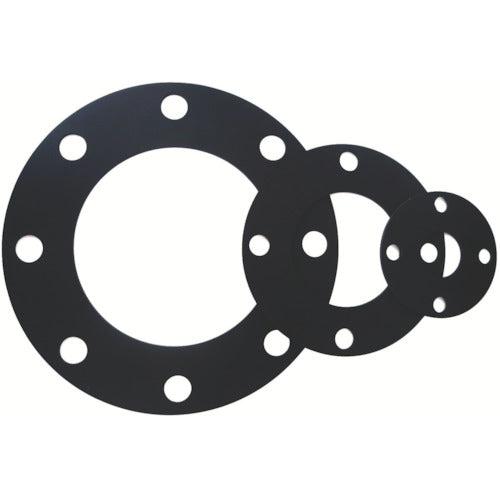

AK Flange packing for JIS 10K 65A CR-65A-10K 1 piece

Catalog number: CR-65A-10K Features: ●This rubber has excellent weather resistance and ozone resistance, and also has some oil resistance. ●This rubber has very well-balanced overall physical properties. Specifications: ●Thickness (mm): 3 ●Operating temperature range (℃): -10 to 80℃ ●Nominal diameter: 65A ●Bolt hole center diameter (mm): 140 ●Number of holes (pcs): 4 ●Nominal diameter B: 2 1/2 ●Operating pressure (K): 10 ●Outer diameter: 175mm ●Hole diameter (mm): 19 ●Nominal diameter (mm): 76.30 ●Nominal diameter A: 65 ●Outer diameter (mm): 175 ●Inner diameter (mm): 77 ●Thickness 3mm Material/Finish: ●CR rubber
