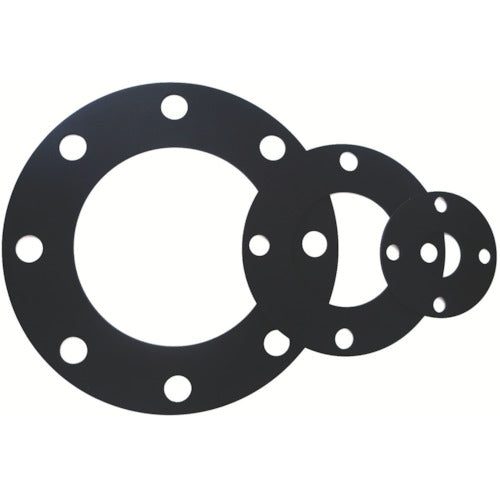

AK Flange packing for JIS 10K 80A NBR-80A-10K 1 piece

Catalog number: NBR-80A-10K Features: ●This rubber has excellent oil resistance and abrasion resistance. However, it is not weather resistant. Specifications: ●Thickness (mm): 3 ●Operating temperature range (℃): -20 to 80℃ ●Nominal diameter: 80A ●Number of holes (pcs): 8 ●Operating pressure (K): 10 ●Nominal diameter B: 3 ●Nominal diameter A: 80 ●Bolt hole center diameter (mm): 150 ●Hole diameter (mm): 19 ●Nominal diameter (mm): 89.10 ●Outer diameter: 185mm ●Outer diameter (mm): 185 ●Inner diameter (mm): 90 ●Thickness 3t Material/Finish: ●NBR rubber
