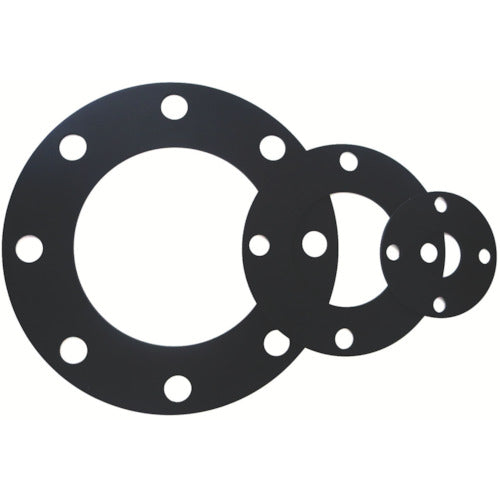

AK Flange packing JIS 5K all 50A CR-50A-5K 1 piece

Catalog number: CR-50A-5K Features: ●This rubber has excellent weather resistance and ozone resistance, and also has some oil resistance. ●This rubber has very well-balanced overall physical properties. Specifications: ●Thickness (mm): 3 ●Operating temperature range (℃): -10 to 80℃ ●Nominal diameter: 50A ●Operating pressure (K): 5 ●Hole diameter (mm): 15 ●Number of holes (pcs): 4 ●Nominal diameter A: 50 ●Bolt hole center diameter (mm): 105 ●Nominal diameter (mm): 60.50 ●Outer diameter: 130mm ●Nominal diameter B: 2 ●Outer diameter (mm): 130 ●Inner diameter (mm): 61 ●Thickness 3mm Material/Finish: ●CR rubber
