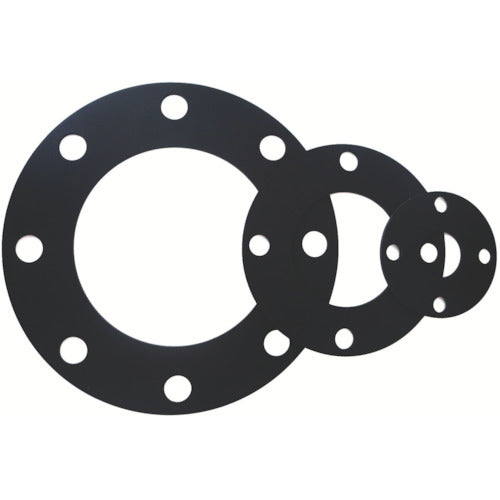

AK Flange packing JIS 5K all 80A CR-80A-5K 1 piece

Catalog number: CR-80A-5K Features: ●This rubber has excellent weather resistance and ozone resistance, and also has some oil resistance. ●This rubber has very well-balanced overall physical properties. Specifications: ●Thickness (mm): 3 ●Operating temperature range (℃): -10 to 80℃ ●Nominal diameter: 80A ●Hole diameter (mm): 19 ●Bolt hole center diameter (mm): 145 ●Number of holes (pcs): 4 ●Nominal diameter A: 80 ●Nominal diameter B: 3 ●Operating pressure (K): 5 ●Outer diameter: 180mm ●Nominal diameter (mm): 89.10 ●Inner diameter (mm): 90 ●Outer diameter (mm): 180 ●Thickness 3mm Material/Finish: ●CR rubber
