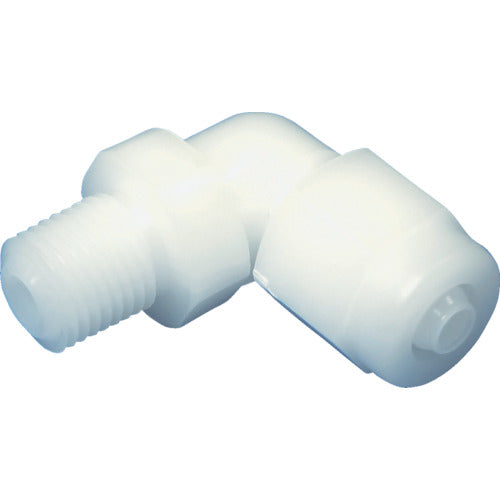

ARAM Tube Fitting FU Connector Half Elbow Polypropylene (White) (1768-06) Applicable Tube Diameter 6 x 9 mm FHL0609R14PP 1 pc

Catalog number: FHL0609R14PP Features: ●Fittings for FU tubes. ●Fittings that are tightened with a nut after fitting the tube, allowing for a secure connection without the need for a separate band or other attachment. Applications: ●For connecting FU tubes. Specifications: ●Compatible tube inner diameter (mm): 6 ●Compatible tube diameter (mm): 6 x 9 ●Thread size: R 1/4 ●Inner diameter (mm): * ●Thread dimensions: R 1/4 ●Compatible tube outer diameter (mm): 9 ●Fluids used: ink, solvents, paints, food, etc. ●Operating temperature range: 5 to 45°C Material/Finish: ●Polypropylene (PP) Caution: ●Before use, check that the nut is not loose. ●If the ridge of the bamboo shoot part becomes rounded, replace it with a new FU connector. ●Do not reuse the sleeve. ●Do not use sleeves other than those specified by our company.
