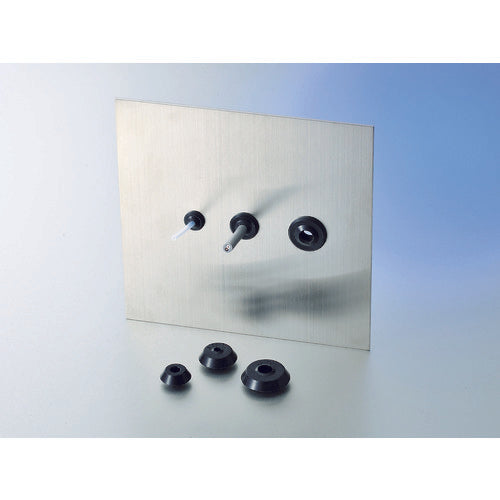

ARAM Bushing Silicone Rubber (7043-01) ABU-01S 1 piece

Catalog number: ABU-01S Features: ●Excellent waterproof and dustproof properties. ●The inside is hollow, so it has a heat insulating effect. (Except for ABU-01S and ABU-01E) ●Easy installation by simply pushing it in, improving work efficiency. ●The bushing effect is only achieved for cables and hard piping that have a circular cross section and are of the specified size. Applications: ●Protection material for cables and wiring. Specifications: ●Color: Black ●Recommended plate thickness (mm): 0.6 to 2.5 ●Height (mm): 12 ●Cable applicable diameter (mm): 4 to 6.35 ●Bulkhead hole diameter (mm): 13 ●Bulkhead applicable thickness (mm): 0.6 to 1.6 ●Outer diameter (mm): 24 ●IP test results ~ Protection class IPX5 (Test method: JIS standard C0920: 2003) ●IP test results ~ Protection class IPX6 (Test method: JIS standard C0920: 2003) Material/Finish: ●Silicone rubber
