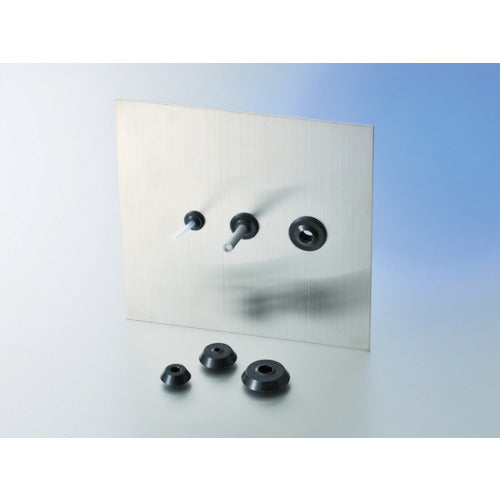

ARAM Bushing Silicone Rubber (7043-03) ABU-03S 1 piece

Catalog number: ABU-03S Features: ●Excellent waterproof and dustproof properties. ●The inside is hollow, so it has an insulating effect. (Except for ABU-01S and ABU-01E) ●Easy installation by simply pushing it in, improving work efficiency. ●The bushing effect is only achieved for cables and hard piping that have a circular cross section and are of the specified size. Applications: ●Protection material for cables and wiring. Specifications: ●Color: Black ●Recommended plate thickness (mm): 0.6 to 2.5 ●Height (mm): 13 ●Cable applicable diameter (mm): 13 to 16 ●Bulkhead hole diameter (mm): 27 ●Bulkhead applicable thickness (mm): 1.5 to 3 ●Outer diameter (mm): 37.5 ●IP test results ~ Protection class IPX5 (Test method: JIS standard C0920: 2003) ●IP test results ~ Protection class IPX6 (Test method: JIS standard C0920: 2003) Material/Finish: ●Silicone rubber
