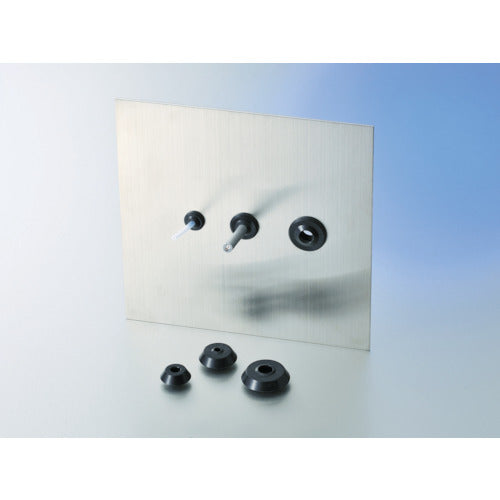

ARAM Bushing EPDM (7044-02) ABU-02E 1 piece

Catalog number: ABU-02E Features: ●Excellent waterproof and dustproof properties. ●The inside is hollow, so it has a heat insulating effect. (Excluding ABU-01S and ABU-01E) ●Simple installation by simply pushing it in, improving work efficiency. ●The bushing effect is only achieved for cables and hard pipes with a circular cross section and the specified size. Applications: ●Protection material for cables and wiring. Specifications: Color: Gray Recommended plate thickness (mm): 0.6-2.5 Height (mm): 13 Cable diameter (mm): 6.35-10 Partition hole diameter (mm): 19 Partition thickness (mm): 1.5-3 Outer diameter (mm): 30 IP test results ~ Protection class IPX5 (Test method: JIS standard C0920: 2003) IP test results ~ Protection class IPX6 (Test method: JIS standard C0920: 2003) Material / Finish: Ethylene propylene rubber (EPDM)
