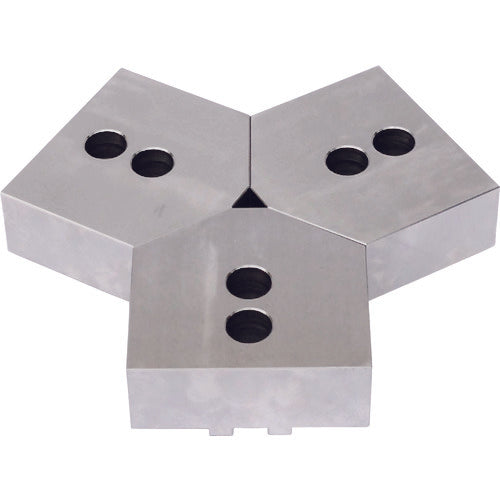

ARM Kitagawa Power Chuck Wide Iron Jaws HO-8W100H60 HO-8W100 H60 1 S

Catalogue number: HO-8W100 H60 Features: ●High-precision product that can process 3 pieces in 1 set at the same time. ●Can grip large diameters all around. ●Special jaws with specified dimensions can also be manufactured. Applications: ●For lathe chucks. ●Available in standard/high jaws (HO-8), small diameter jaws (HO-8S), no chamfer (HO-8K), and wide jaws (HO-8W). ●Select the jaws that best suit the work being processed. Specifications: ●Chuck outer diameter (inch): 8 ●Pitch (mm): 1.5 ●Length (mm): 95 ●Width (mm): 100 ●Height (mm): 60 ●Chuck size (inch): 8 ●Compatible manufacturer: Kitagawa Iron Works ●Compatible chucks: BR08 / B-208 / AS08 / BB208 / BL208 / BLT208 / BT208 / NLT08 / NT08 Material/Finish: ●S50C Note: ●Shipping unit is 1 set (3 pieces).
