ARM L-type clamp heavy duty bar handle 100mm LHB-100 1 piece

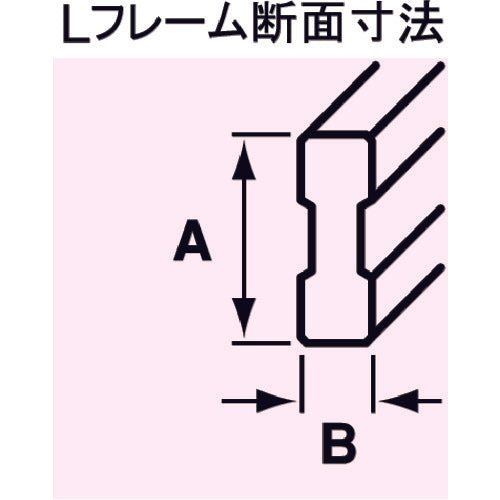

Catalog number: LHB-100 Features: ● Strong frame is used, and stronger crimping is possible than LD type. ● Bar handle allows for stronger tightening. ● Since no plastic is used, it can be used safely even if sparks fly during welding work. Applications: ● For machining and welding work. Specifications: ● Total length (mm): 210 ● Maximum opening (mm): 100 ● Depth (mm): 120 ● Frame dimension (mm) A: 21.4 ● Frame dimension (mm) B: 10.4 ● Maximum tightening pressure (kg): 700 ● Tightening pressure (kg) (when opened 30 mm): 700 ● Outer spread width (mm): 100 ● Arm length (mm): 210 ● Maximum opening dimension (mm): 100 ● Depth of pocket (mm): 120 ● Tightening force (kg): 700 ● Bar handle Material / Finish: ● Special steel Caution: ● Lubricate the screw part from time to time.
