ARM L-type clamp heavy duty bar handle 150mm LHB-150 1 piece

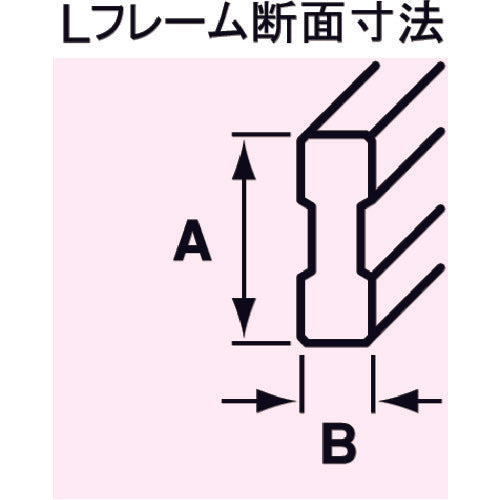

Catalog number: LHB-150 Features: ●Possession depth (mm): 120 ●Tightening force (kg): 700 ●With bar handle ●Maximum opening dimension (mm): 100 ●Uses a strong frame, allowing for stronger crimping than the LD type. ●The bar handle allows for stronger tightening. ●Since no plastic is used, it can be used safely even if sparks fly during welding work. Applications: ●For machining, welding work, etc. Specifications: ●Total length (mm): 260 ●Maximum opening (mm): 150 ●Through depth (mm): 120 ●Frame dimension (mm) A: 21.4 ●Frame dimension (mm) B: 10.4 ●Maximum clamping pressure (kg): 700 ●Tightening pressure (kg) (when opened 30 mm): 700 ●Outer spread width (mm): 150 ●Arm length (mm): 260 ●Maximum opening dimension (mm): 100 ●Through depth (mm): 120 ●Tightening force (kg): 700 ●Bar handle Material/Finish: ●Special steel Caution: ●Occasionally lubricate the threaded parts.
