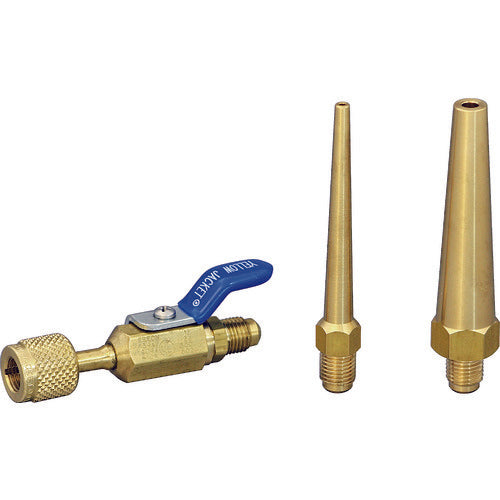

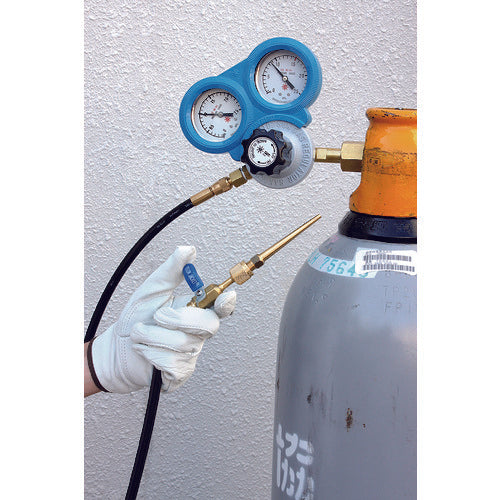

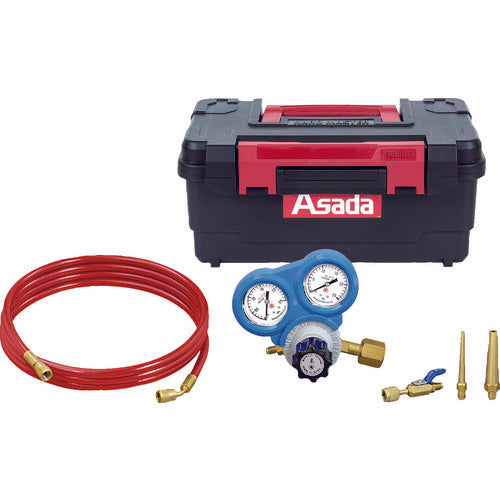

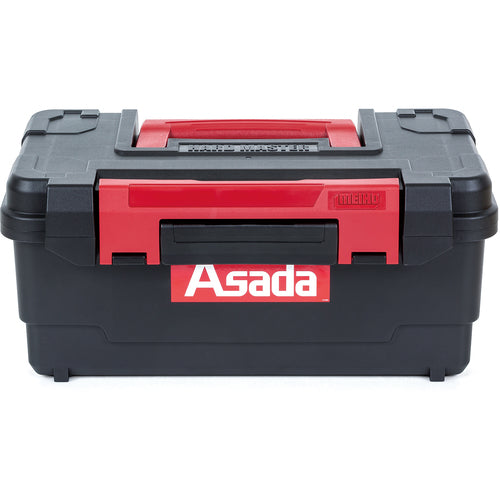

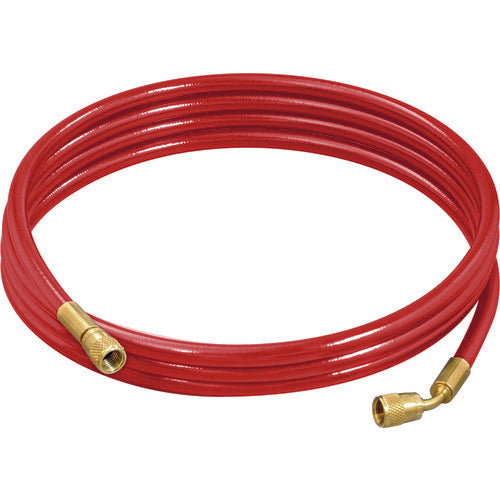

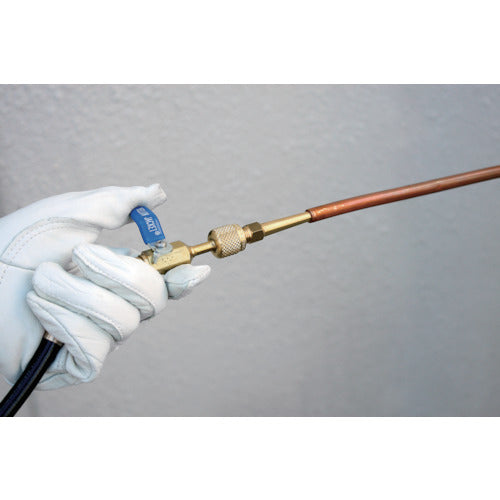

Catalog number: XP676 Features: ● During brazing work, nitrogen is passed through the inside of the pipe to prevent the formation of an oxide film (soot). Applications: ● For removing moisture and foreign matter mixed in during pipe construction. ● For flushing existing pipes when installing air conditioners that do not require pipe cleaning. ● For flushing after cleaning existing pipes using System Cleaner CF-20. Specifications: ● Pressure (MPa): 0-25 (primary side), 0-2.5 (secondary side) ● Connection diameter: 1/4 flare (UNF7/16-20 threads) ● Included case: Yes ● Secondary side adjustable pressure (MPa): 0-1.0 ● Hose normal pressure: 5.0MPa ● Hose burst pressure: 20.0MPa ● Standard flow rate (m3/h): 30 ● Regulator inlet side connection: W22/14 (right) bag nut (P) ● Regulator outlet side connection: 1/4 flare (UNF7/16-20 threads) ● Hose connection diameter: 1/4 flare (UNF 7/16-20 threads) with screw press ● Hose length (m): 3 Material/Finish: ● Brass ● Rubber ● Resin Set contents/accessories: Large tapered nozzle (1/2, 5/8, 3/4 inch), small tapered nozzle (1/4, 3/8 inch), ball valve, 1/4 inch nitrogen hose 3m, nitrogen blow regulator, case
